Unlock Peak Performance of Your Centrifugal Pumps with Koleburg High-Quality Motors – Reliable, Efficient, and Built to Last for Industrial Applications.
- High-grade copper windings for low energy loss and long service life
- Aluminum alloy housing for excellent heat dissipation and corrosion resistance
- Precision CNC machining for tight dimensional tolerance and stable operation
- Strict ISO 3601 compliant quality control during production
- High-temperature resistant insulation materials for extreme working conditions
Koleburg Centrifugal Pump Motor: High-Efficiency Power Core for Stable Pump Operation
Gebaut, um auch in den anspruchsvollsten Industrieumgebungen gleichbleibende Leistung zu liefern.
Koleburg Motor Technical Advantages
Koleburg centrifugal pump motors integrate advanced magnetic circuit design and low-noise bearing technology, delivering high torque at low speed and adapting seamlessly to Industrial Centrifugal Pumps of various models. The optimized rotor structure minimizes vibration, extending the overall service life of the pump system by 30%.
Why Choose Koleburg Motors?
With years of experience in matching motors for pump systems, Koleburg provides tailor-made motor solutions that perfectly fit different working conditions such as high pressure and high temperature. We offer comprehensive pre-sales consultation and after-sales maintenance services, ensuring 99.8% operational reliability of our motors in industrial environments.
Other Applications of Koleburg Motors
Beyond centrifugal pumps, Koleburg motors are widely applicable to deep well pumps, fire pumps, and other industrial fluid equipment. They are especially suitable for harsh working environments such as chemical plant applications and power plant applications, showcasing excellent corrosion and high-temperature resistance.
Anpassungsfähigkeiten
- Power customization: Range from 0.75kW to 200kW, supporting both single-phase and three-phase power supply
- Voltage customization: Adapt to 110V, 220V, 380V, 440V and other global standard voltages
- Protection level customization: IP54, IP55, IP65 and other levels to meet different environmental requirements
- Shaft extension customization: Customize shaft diameter and length according to pump connection requirements
- Special material customization: Adopt FKM (Fluororubber) seals for corrosion-prone environments
Empfehlungen für Installation und Wartung
Before installation, check the motor’s model, voltage and rotation direction to ensure consistency with the centrifugal pump. Clean the connection surface of the motor and pump to avoid dust and debris affecting the connection accuracy.
During installation, ensure that the motor and pump are coaxial to prevent excessive vibration caused by misalignment. Tighten the fixing bolts evenly and apply appropriate lubricating oil to the coupling according to the requirements.
Regularly inspect the motor’s operating temperature and noise during use. Clean the heat dissipation fins every 3-6 months and replace the lubricating oil annually to maintain optimal performance. For motors used in harsh conditions, shorten the inspection cycle appropriately.
Benutzerunterstützung
Bieten Sie verschiedene Support-Lösungen für OEM und KOLEBURG jeweiligen Marken.
Ich brauche OEM
Gestalten Sie Ihre Marke, schaffen Sie Ihren Wert und seien Sie der Beste
Ich will KOLEBURG Marken
Professionelle Technologie. Einigkeit, Exzellenz, Einfluss. Ausgezeichneter Service.
Koleburg sonstiges Zubehör
Die zuverlässige Ersatzteilversorgung bietet Ihnen eine sorgenfreie Garantie für den langfristigen Betrieb und die Wartung Ihres Pumpensystems.
Koleburg Motor FAQS
What is Motor?
Motor, also known as electric motor, is an electromagnetic device that converts electrical energy into mechanical energy. Its working principle is based on the electromagnetic induction phenomenon: when the stator winding is connected to an alternating current, a rotating magnetic field is generated, which drives the rotor to rotate through electromagnetic torque, thereby outputting mechanical power to drive the load. In pump systems, motors are the “power heart” that drives the impeller to rotate and realize fluid transportation.
For pump-matched motors, key performance indicators include rated power, energy efficiency level, rated speed, insulation class and protection level. These indicators determine the motor’s adaptability to different pump working conditions. For example, in high-temperature pump systems, the motor’s insulation class needs to reach at least F level (limit temperature 155℃); in humid or dusty environments, the protection level should not be lower than IP54 to ensure long-term stable operation.
Material Selection of Common Motors: Performance and Application Matching
The material of motor components is the fundamental guarantee for its performance and service life. Core components such as stator windings, rotor cores and casings have strict material requirements. The following table lists the material types, key performance parameters and typical pump application scenarios of common motors:
Component & Material Type | Wichtige Leistungsparameter | Typische Pumpenanwendungen |
|---|---|---|
Stator Winding: High-purity Copper | Conductivity: ≥58 MS/m; Loss reduction: 15%-20% compared with aluminum windings; Service life: ≥10 years | Industrial centrifugal pumps, boiler feed pumps |
Rotor Core: Silicon Steel Sheet | Magnetic permeability: ≥1.5×10^-3 H/m; Iron loss: ≤2.5 W/kg (50Hz, 1.5T); High mechanical strength | Variable frequency centrifugal pumps, submersible pumps |
Casing: Aluminum Alloy | Thermal conductivity: ≥160 W/(m·K); Corrosion resistance: Good; Weight reduction: 30% compared with cast iron | Lightweight centrifugal pumps, agricultural irrigation pumps |
Casing: Cast Iron | Tensile strength: ≥250 MPa; Impact toughness: ≥15 J/cm²; High temperature resistance: ≤200℃ | High-pressure centrifugal pumps, chemical pumps |
The selection of motor materials must be closely combined with the pump’s working environment. For example, in Chemieanlage pump systems with corrosive media, motors with aluminum alloy casings and anti-corrosion coated windings should be selected; in high-temperature pump systems such as boiler feed pumps, silicon steel sheet rotors and F-class insulated windings are necessary to ensure stable operation at high temperatures.
How Does Motor Design Affect Pump System Efficiency?
The structural design of common motors directly affects the energy efficiency and operation stability of pump systems. Key design links include magnetic circuit optimization, bearing selection and cooling system design:
- Magnetic circuit optimization: Adopting a closed-type magnetic circuit design and optimizing the air gap between stator and rotor (controlled within 0.2-0.5mm) can reduce magnetic flux leakage, improve motor power factor by 5%-8%, and thus enhance the overall efficiency of the pump system.
- Bearing selection: High-precision deep groove ball bearings or angular contact ball bearings are used for pump motors. The friction coefficient of these bearings is ≤0.001, which can reduce mechanical loss by 10%-15%. For high-speed pump motors (speed ≥3000 r/min), ceramic bearings with higher wear resistance are preferred.
- Cooling system design: According to the working conditions, natural cooling, forced air cooling or water cooling systems are configured. For example, the forced air cooling system of high-power pump motors (≥55kW) can reduce the motor operating temperature by 20-30℃, extending the service life by 30%.
The following table shows the impact of different motor design parameters on centrifugal pump system efficiency:
Motor Design Parameter | Parameter Bereich | Impact on Pump System Efficiency |
|---|---|---|
Air gap between stator and rotor | 0.2mm vs 0.5mm | Efficiency increased by 3%-5% when air gap is reduced |
Bearing type | Ordinary ball bearing vs Ceramic bearing | Ceramic bearing reduces mechanical loss by 12%, system efficiency increased by 2%-3% |
Cooling method | Natural cooling vs Forced air cooling | Forced air cooling reduces motor temperature rise by 25℃, system efficiency increased by 1%-2% |
Application of Common Motors in Various Pumps
Common motors are widely used in various pump types, and their selection and configuration are customized according to the working characteristics and performance requirements of different pumps. The following focuses on their application in centrifugal pumps, submersible pumps and fire pumps:
1. Zentrifugalpumpen
Centrifugal pumps are the most widely used pump type in industrial production and urban water supply. The matching motor is required to have high efficiency, stable torque output and good compatibility with variable frequency speed regulation. Centrifugal pump motor is usually AC asynchronous motor or permanent magnet synchronous motor, with energy efficiency level reaching IE3 or above.
Zentrifugalpumpe Typ | Motor Requirements | Anwendung Wirkung |
|---|---|---|
Industrial High-pressure Centrifugal Pump | Power: 22-200kW; Energy efficiency: IE4; Insulation class: F; Protection level: IP55; Speed: 1450-2950 r/min | Stable operation under pressure up to 25MPa; Energy consumption reduced by 15%-20% compared with IE3 motors; Service life ≥8 years |
Variable Frequency Centrifugal Pump | Permanent magnet synchronous motor; Power: 0.75-75kW; Speed range: 300-3000 r/min; Low noise: ≤75 dB(A) | Flow regulation range 10%-100%; Energy saving rate 20%-35%; Stable operation with low vibration (vibration amplitude ≤2.8 mm/s) |
Chemical Centrifugal Pump | Explosion-proof grade: Ex d IIB T4; Material: Corrosion-resistant cast iron; Insulation class: F; Protection level: IP65 | Safe operation in flammable and explosive environments; Corrosion resistance to acid and alkali media; Failure rate ≤0.5% per year |
Taking the 100DF16*6 multi-stage centrifugal pump as an example, its matching 22kW IE3 motor has a rated speed of 2950 r/min, which can drive the pump to achieve a flow rate of 37.6-72 m³/h and a head of 67.2-118.8 m, with the pump-motor system efficiency reaching 66%-73%.
2. Submersible Pumps
Submersible pumps work in full-submerged or semi-submerged environments, so their matching motors must have excellent sealing performance, corrosion resistance and waterproof performance. Submersible pump motors are usually wet-type or dry-type, with protection level up to IP68.
- Material selection: The casing is made of stainless steel or duplex steel; the winding is wrapped with water-resistant and corrosion-resistant insulation material (such as F-class waterproof insulation paper), which can resist the corrosion of seawater, sewage and other media.
- Structural requirements: Equipped with double mechanical seals and oil chamber leakage protection; the motor shaft is connected with the pump shaft through a rigid coupling to ensure coaxiality and reduce vibration.
- Application effect: In marine bilge drainage pumps, the stainless steel submersible motor can operate stably in seawater with chloride ion concentration up to 50000 mg/L, with a service life of more than 5 years; in sewage treatment pumps, the motor’s anti-clogging design can reduce the failure rate by 40%.
3. Feuerlöschpumpen
Fire pumps require motors to have fast start-up performance, high reliability and strong overload capacity. In case of fire, the motor must start quickly (start-up time ≤30 seconds) and maintain stable operation under 110%-120% overload conditions for a long time.
Anwendungsszenario Feuerlöschpumpe | Motor Technical Parameters | Wesentliche Vorteile |
|---|---|---|
Brandschutz in Hochhäusern | Power: 37-160kW; Start-up mode: Direct start; Insulation class: H; Protection level: IP54; Overload capacity: 120% for 1 hour | Fast start-up; Stable high-pressure water supply; Adapt to complex building electrical environments |
Brandschutz im Kraftwerk | Explosion-proof grade: Ex d IIC T4; Power: 75-250kW; Energy efficiency: IE3; Cooling method: Forced air cooling | Resist high-temperature flue gas erosion; Safe operation in flammable and explosive areas; Long-term standby stability |
Key Factors Affecting Motor Performance in Pump Systems
The performance of common motors in pump systems is affected by many factors, including working conditions, installation accuracy, power quality and maintenance level. Understanding these factors is crucial for optimizing motor performance and extending service life:
- Working condition temperature: When the ambient temperature exceeds 40℃, the motor’s output power will decrease by 1%-2% for every 1℃ increase. For example, an IE4 motor with rated power 55kW will have its output power reduced to 50kW when working at 50℃.
- Installation accuracy: The coaxiality deviation between the motor and the pump should be controlled within 0.1mm. Excessive deviation will increase the motor’s mechanical load, leading to increased energy consumption and shortened bearing life. When the coaxiality deviation is 0.2mm, the motor’s energy consumption increases by 8%-10%.
- Power quality: Voltage fluctuation and harmonic distortion will affect motor performance. When the voltage fluctuation exceeds ±10%, the motor’s torque output will fluctuate by ±15%; harmonic distortion rate ≥5% will increase the motor’s copper loss by 10%-15%.
- Lubrication condition: Insufficient lubrication of motor bearings will increase friction loss, leading to overheating and damage. The bearing temperature of normally lubricated motors is ≤80℃, while that of insufficiently lubricated motors can reach 120℃ or more, and the service life is reduced by 70%.
Selection and Maintenance of Motors for Pump Systems
Grundsätze der Auswahl
The selection of motors for pump systems should follow the principle of “matching working conditions, ensuring efficiency and reliability, and balancing cost-effectiveness”:
- Power matching: According to the pump’s shaft power, select a motor with appropriate rated power, and reserve 10%-20% power margin to avoid overload operation. For example, if the pump’s shaft power is 18.42kW, a 22kW motor should be selected.
- Energy efficiency selection: Prioritize the selection of motors that meet IE3 or IE4 energy efficiency standards. According to ErP Directive requirements, motors with power 75-200kW have been mandatory to implement IE4 energy efficiency standards since January 2025, which can significantly reduce energy consumption.
- Environmental adaptation: Select the appropriate protection level and insulation class according to the working environment. For example, in humid and dusty environments, motors with IP54 protection level and F-class insulation should be selected.
- Speed matching: According to the pump’s rated speed, select a motor with corresponding pole number. For example, a pump with rated speed 2950 r/min should be matched with a 2-pole motor; a pump with rated speed 1450 r/min should be matched with a 4-pole motor.
Empfehlungen zur Wartung
Scientific maintenance can effectively extend the service life of pump motors and ensure stable operation. The following are key maintenance measures:
- Regular inspection: Check the motor’s operating temperature, noise and vibration every month. For motors in harsh working conditions, the inspection cycle should be shortened to 2 weeks. The allowable temperature rise of F-class insulated motors is ≤105℃, and the allowable vibration amplitude is ≤2.8 mm/s.
- Lubrication maintenance: Replace the bearing lubricating oil or grease regularly. For general working conditions, the replacement cycle is 6-12 months; for high-temperature and high-speed working conditions, it is 3-6 months. The filling amount of lubricating grease should be 1/2-2/3 of the bearing cavity volume.
- Electrical system inspection: Check the motor’s insulation resistance and winding temperature every year. The insulation resistance of the motor should be ≥1 MΩ; if it is lower than 0.5 MΩ, insulation treatment should be carried out immediately.
- Storage and protection: When the motor is not in use for a long time, it should be stored in a dry, ventilated and clean environment, avoiding direct sunlight and contact with corrosive media. The storage temperature should be controlled at 0-40℃, and the relative humidity should be ≤75%.

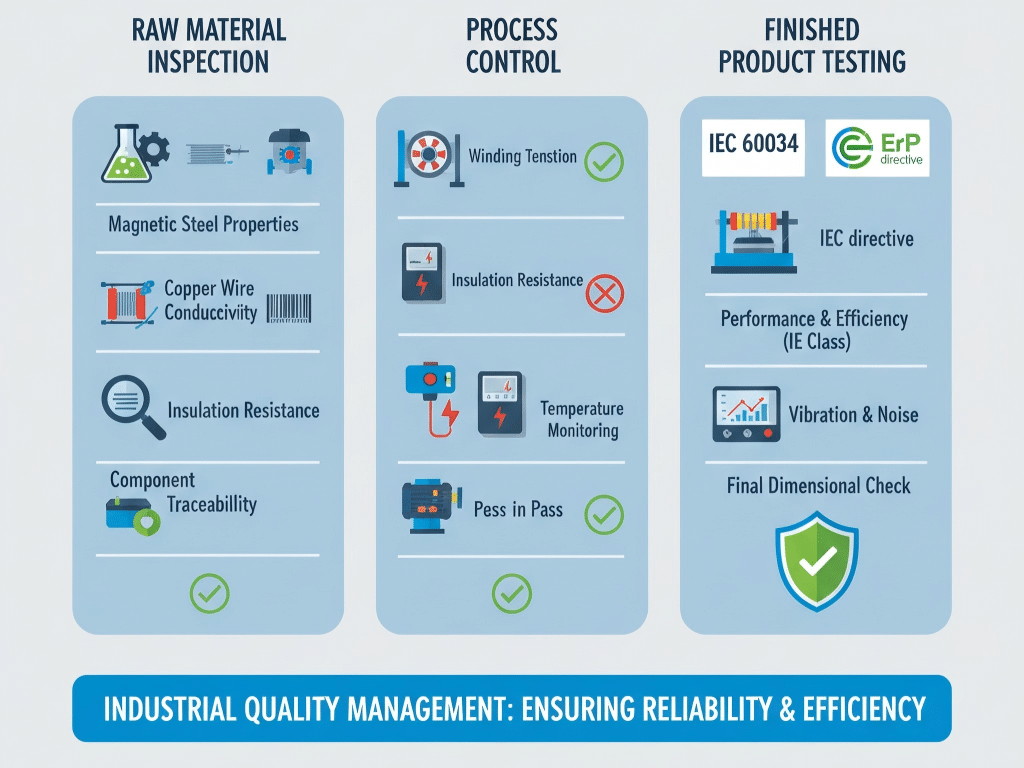

Motor Quality Control and International Standards
The quality of pump motors is directly related to the safe and efficient operation of pump systems. Strict quality control should be implemented throughout the production process, including raw material inspection, process control and finished product testing. Raw material inspection mainly includes the chemical composition and mechanical properties of copper wire, silicon steel sheet and other materials; process control focuses on winding process, casting process and assembly accuracy; finished product testing includes no-load test, load test, insulation test and protection level test.
Pump motors must comply with relevant international standards, such as IEC 60034 (Rotating electrical machines) and ErP Directive (2009/125/EC). IEC 60034-30-1 specifies the energy efficiency levels of AC motors, dividing them into IE1, IE2, IE3 and IE4 levels. ErP Directive requires that motors sold in the EU must meet the corresponding energy efficiency standards, and mandatory implementation of IE4 standards for motors with power 75-200kW has been carried out since January 2025. These standards provide a unified technical basis for the production and application of pump motors.
Customization of Motors for Special Pump Working Conditions
In some special pump working conditions (such as extreme temperature, high pressure, flammable and explosive environments), standard motors cannot meet the requirements, so customized motor solutions are needed. Koleburg has rich experience in motor customization for pump systems, providing comprehensive customization services:
- Power and speed customization: Provide motors with power ranging from 0.75kW to 500kW and speed ranging from 300r/min to 6000r/min to match special pump types.
- Material customization: Use special materials such as titanium alloy casings and ceramic windings for extreme environments to improve corrosion resistance and high temperature resistance.
- Protection and insulation customization: Provide motors with protection levels up to IP68 and insulation levels up to H class to adapt to harsh working environments such as deep sea and high temperature.
- Special function customization: Equip with functions such as remote monitoring, fault alarm and automatic start-stop to meet the intelligent control requirements of pump systems.
Future Development Trends of Pump Motors
With the continuous development of industrial intelligence and energy conservation and emission reduction requirements, pump motors are developing in the direction of high efficiency, intelligence, miniaturization and greenization:
- High-efficiency energy saving: The application of permanent magnet synchronous motor technology will be more widespread. Compared with traditional asynchronous motors, permanent magnet synchronous motors have higher energy efficiency (up to IE5 level) and lower energy consumption, which can further improve the energy efficiency of pump systems.
- Intelligent upgrading: Integrate sensors and IoT technology into motors to realize real-time monitoring of operating parameters such as temperature, vibration and load. Through big data analysis, predictive maintenance is carried out to reduce downtime and maintenance costs.
- Miniaturization and lightweight: With the progress of material science and structural design technology, pump motors will be more miniaturized and lightweight, reducing installation space and transportation costs while ensuring performance.
- Green environmental protection: Adopt environmentally friendly materials and processes, reduce the use of harmful substances, and improve the recyclability of motors to meet the increasingly strict environmental protection requirements.
