KOLEBURG BH300L Horizontal Centrifugal Pump Series Product

Name: KOLEBURG BH300L Horizontal Centrifugal Pump Series Product
SKU: KOLEBURG BH300L
Price: 9000.00 CNY
Availability: InStock

No Clogging Centrifugal Pump

The KOLEBURG BH300L is a high-efficiency, heavy-duty horizontal centrifugal pump featuring aSingle Helix Pump Impeller. It is engineered for reliable performance in handling large-flow, medium-to-high lift fluids, including wastewater with solid particles, fibrous materials and abrasive media. Designed with industrial-grade durability, this pump is widely applicable to municipal and heavy industrial fluid transfer scenarios.

Specification

Parameter	Specification
Model	KOLEBURG BH300L
Type	Single Helix Impeller Horizontal Centrifugal Pump
Flow Rate	608-1000 m³/h
Head	8.6-43 m
Outlet Diameter	300 mm
Motor Power	22-185 KW (4/6/8-pole motor)
Rotation Speed	740-1000 rpm
Protection/Insulation Class	IP68 / Class F
Efficiency Class	IE3 High Efficiency Motor

KOLEBURG BH80L Horizontal Centrifugal Pump Information

Model & Information

Model parameter table, performance curves, drawings

KOLEBURG BH300L Series Product Model
NO	Model	Flow (m3/h)	Lift (m)	Power(KW)	Speed（ rpm）	Inlet (DN)	Motor Type
1	BH300L-Q608H8-6N22D740	608	8.6	22	740	300	Eight-stage motor
2	BH300L-Q684H9-5N15C970	684	9.5	15	970	300	Six-stage motor
3	BH300L-Q700H14N37D780	700	14	37	780	300	Eight-stage motor
4	BH300L-Q700H16N45D780	700	16	45	780	300	Eight-stage motor
5	BH300L-Q700H21N55D780	954	21	55	780	300	Eight-stage motor
6	BH300L-Q954H19N75B1480	1000	19	75	1480	300	Four-stage motor
7	BH300L-Q1000H24N90C980	1000	24	90	980	300	Six-stage motor
8	BH300L-Q1000H28N110C980	1000	28	110	980	300	Six-stage motor
9	BH300L-Q1000H32N132C980	1000	32	132	980	300	Six-stage motor
10	BH300L-Q1000H35N160C1000	1000	35	160	1000	300	Six-stage motor
11	BH300L-Q1000H43N185C1000	1000	43	185	1000	300	Six-stage motor

Tailored to your exact needs, our centrifugal pumps are engineered with application-specific parameters to deliver optimized efficiency, durability, and operational reliability.

Materials & Surface Treatments

Pump body & impeller

KOLEBURG BH80L Horizontal Centrifugal Pump Series Product pump body and pump impeller main materials and heat treatment process

Pump Casing Material & Treatment

Material	Heat Treatment	Surface Processing
Cast Iron / Carbon Steel	Annealing	Epoxy Resin Coating
304/304L	Solution Annealing	Passivation
316/316L	Solution Annealing	Passivation
Duplex 2205	Solution Annealing (Water Quenched)	Pickling & Passivation
Rubber Lined	Lining Bonding Curing	Surface Finishing
Titanium Alloy	Solution Annealing	Passivation

Impeller Materials and Handling

Material	Heat Treatment	Wear Resistance Grade
ZG/20Cr13	Quenching + Low-Temperature Tempering	HRC 48-52
304/304L	Solution Annealing	Corrosion-Priority
316/316L	Solution Annealing	Corrosion-Priority
Duplex 2205	Solution Annealing	HRC 30-35
High-Chromium Cast Iron (KmTBCr26)	High-Temperature Quenching + Tempering	HRC 58-62

Centrifugal pump

Application industry

KOLEBURG BH80L Horizontal Centrifugal Pump, industry applications and advantages

Municipal & Industrial Wastewater

Ideal for large-flow activated sludge transfer and sewage recycling, the single helix design ensures smooth operation without clogging.

Coal-fired Power Station

High wear resistance adapts to sand-laden water drainage in foundation pits and tunnels, with 12-60m lift meeting diverse dewatering needs.

Agricultural & Rural Wastewater

Efficient in handling circulating water and flue gas desulfurization wastewater, ensuring stable operation for power generation systems.

Recommended Material Combinations

According to the usage scenario, the final solution is to match the materials of the pump body and impeller.

Application Scenario	Pump Casing	Impeller	Combination Rationale
Sewage Treatment Plant	Cast Iron + Epoxy Coating	ZG/20Cr13 (Quenched & Tempered)	Cost-effective combo: epoxy resists sewage corrosion, ZG/20Cr13 handles sludge wear.
Mining Industry (Slurry Transfer)	Carbon Steel + Rubber Lining	High-Chromium Cr26 (Quenched & Tempered)	Rubber lining absorbs impact; Cr26 provides top-tier wear resistance for abrasive slurry.
Chemical Plant (High-Chloride Effluent)	316L Stainless Steel	316L Stainless Steel	Full corrosion resistance lineup for challenging industrial effluents.
Coal-fired Power Station	Duplex 2205	Duplex 2205	High strength and corrosion resistance, adapting to desulfurization wastewater transfer.

Key Product Advantages

Large-Flow & Stable Transfer Performance: The optimized Single Helix Pump Impeller design enables 608-1000 m³/h large flow output, with uniform flow and low vibration, meeting heavy-duty fluid transfer needs.
Excellent Wear & Corrosion Resistance: Multiple high-performance material options (e.g., Duplex 2205, High-Chromium Cast Iron) with professional heat treatment ensure long-term reliable operation in abrasive and corrosive environments.
Energy-Saving & High Reliability: Equipped with IE3 high-efficiency motor and IP68 protection class, it reduces energy consumption by 15-20% compared to ordinary pumps and ensures stable operation in harsh working environments.

Related products

The world’s leading manufacturer of non-clogging pumps

User support

Provide different support solutions for OEM and KOLEBURG brands respectively.

I need OEM

Design Your Brand, Create Your Value, And Be The Best

I Want KOLEBURG brands

Professional technology. Unity, excellence, influence. Excellent service.

Total selection interval chart

Comprehensive reference

Provide you with a multi-caliber selection range reference

centrifugal pump manufacturers

Our advantages

Non-Clogging Technology

Flow Channel Optimization

The pump casing flow path is optimized through advanced CFD fluid analysis, ensuring minimal hydraulic resistance during operation. This design significantly reduces impurity adhesion and minimizes clogging risk — improving the efficiency and reliability of the wastewater pump system.

Excellent Solids Handling Performance

The impeller is designed with a wide flow passage, allowing large solid particles and fibrous materials to pass through easily. This ensures strong solids handling capability and non-clog performance, making it ideal for industrial sewage and wastewater applications.

Anti-Clog Balanced Hydraulic Structure

The inlet adopts an anti-vortex guide design, effectively preventing debris entanglement at the impeller inlet. This anti-clog structure maintains balanced flow, reduces blockage risk, and enhances the long-term durability of the submersible sewage pump.

Stable Application Performance

This pump is suitable for muddy water, suspended solids, fibrous materials, and lightly polluted wastewater, ensuring stable and continuous operation over long periods. It is widely used in industrial wastewater treatment, drainage systems, and municipal pumping stations.

Our advantages as a centrifugal pump manufacturer

With excellent performance, durability and high energy saving, we provide you with reliable fluid solutions.learn more

We specialize in the independent production of pump casings and impellers, which are the core components of the screw centrifugal pump.

The pump body is precisely cast and machined in-house, ensuring excellent dimensional accuracy and long-term durability.
The impeller adopts high-efficiency spiral and centrifugal geometry, manufactured using CNC machining and dynamic balancing to guarantee smooth operation and superior hydraulic performance.

Cooperation Advantages

Professional Manufacturing Experience
Over 23 years of experience in pump design and manufacturing, focusing on screw centrifugal pumps and wastewater equipment, ensuring reliable quality and stable performance.

Independent Core Component Production
We manufacture pump casings and impellers in-house, using advanced CNC machining and dynamic balancing technology, to ensure precise assembly and high hydraulic efficiency.

We provide custom-designed pump solutions tailored to the specific needs of each client.
Our professional engineering team can adjust key parameters — including flow rate, head, material, inlet/outlet interface, and sealing method — to achieve optimal performance for different working conditions.

Through advanced CFD hydraulic optimization and precision manufacturing, we ensure every customized pump delivers high efficiency, reliability, and durability even under complex environments.

Product application

Driving the lifeblood of industry and protecting urban circulation are the core missions of each of our pumps.

Eco Water Solutions

Environmental Protection

Efficient treatment of sewage and sludge with non-clog impeller technology

Reliable Wastewater Handling

Image accordion content

Continuous and stable drainage for factories and processing lines.

Cooling & Drainage Efficiency

Energy & Power

Safe cooling water and drainage solutions for power plants.

Heavy-Duty Dewatering

Special Engineering

Designed for tunnels, mines, and construction with high solid content.

Pump Centrifugal Parts

Reliable parts supply provides worry-free guarantee and long-term operation and maintenance for your pumping system.

Frequently Asked Questions (FAQs)

1. How do I select the right centrifugal pump for my application?

Our engineering team provides free, expert selection support. Simply share your key parameters—such as fluid type, required flow rate (e.g., GPM or m³/h), total head (e.g., feet or meters), temperature, and system specifications—and we will recommend the optimal pump model for maximum efficiency and reliability.

2. What is your standard lead time for orders?

For standard models, we often have stock available or can offer short production cycles. The exact lead time depends on the specific pump model and our current order schedule. We understand project urgency and offer expedited production options for critical needs whenever possible.

3. What kind of warranty and after-sales support do you provide?

All our pumps come with a comprehensive warranty. We are committed to your long-term satisfaction through a robust support network, offering rapid technical assistance, readily available spare parts, and expert maintenance services to minimize downtime.

4. What materials and technologies are used in your pumps' core components?

The longevity of critical parts like impellers and mechanical seals is our priority. We utilize high-performance materials (e.g., stainless steel, cast iron) and precision manufacturing, including dynamic balancing. Our mechanical seals are sourced from leading suppliers to ensure durability in demanding conditions.

Talk to Our Product Experts Today!

Related centrifugal Pump FAQS

1. Basic Definitions & Concepts

1.1 What is a horizontal centrifugal pump?

A horizontal centrifugal pump is a fluid transfer device with a horizontally mounted impeller shaft, which relies on centrifugal force generated by high-speed impeller rotation to accelerate fluids and realize medium transportation. It is widely used in industrial and municipal scenarios due to its stable operation, easy maintenance and large flow capacity. Horizontal centrifugal pump typically consists of pump body, impeller, shaft, bearing, seal and motor components, and its performance verification complies with international standards such as ISO 9906.

1.2 What is the working principle of a single helix pump impeller?

When the single helix pump impeller rotates, fluids enter the impeller through the suction port and move along the spiral flow channel under the push of blades. The single helix structure reduces fluid turbulence, improves flow stability, and effectively prevents clogging by solid particles and fibrous materials. Compared with traditional impellers, it has better adaptability to complex media and higher energy conversion efficiency in large flow working conditions.

2. Functions & Applications

2.1 What are the main application fields of large flow horizontal centrifugal pumps?

Large flow horizontal centrifugal pumps are widely used in environmental protection, industrial production, energy and mining fields. The following table lists the core application scenarios of KOLEBURG BH300L, its handling objects and product advantages in each scenario, all of which meet the fluid transfer requirements of relevant industries:

Application Field	Handled Objects	Product Advantages
Sewage Treatment	Activated sludge, sewage	Single helix impeller ensures non-clogging, adapting to large flow sewage recycling needs
Mining Industry	Mining wastewater, low-concentration slurry	Wear-resistant material options cope with abrasive media, ensuring stable operation
Chemical Industry	Low-to-medium viscosity chemical effluent	Corrosion-resistant configurations adapt to harsh chemical environments
Power Station	Circulating water, desulfurization wastewater	Large flow output matches power station system operation requirements

The above application scenarios cover the main market demands of large flow medium-to-high lift horizontal centrifugal pumps. The structural design of KOLEBURG BH300L is optimized for these scenarios, and its performance indicators fully comply with international industry standards, ensuring reliable operation in harsh working conditions.

2.2 What types of media can a single helix impeller pump handle?

KOLEBURG BH300L with single helix impeller can handle a variety of media, including clean water, sewage containing solid particles (particle size ≤50mm), fibrous media, low-to-medium viscosity chemicals and abrasive slurry. The specific media adaptability is determined by the selected pump body and impeller materials. For example, 316L stainless steel configuration is suitable for corrosive media, while high-chromium cast iron impeller is suitable for highly abrasive slurry.

3. Product Types & Specifications

3.1 What are the key specifications of KOLEBURG BH300L?

KOLEBURG BH300L is a large flow medium-to-high lift horizontal centrifugal pump, whose specifications are optimized for industrial and municipal large flow fluid transfer needs. All parameters comply with international standards such as ISO 9906 and EN 733. The specific specifications are shown in the following table:

Specification Item	Range	Compliance Standard
Flow Rate	608-1000 m³/h	ISO 9906
Head	8.6-43 m	ISO 9906
Motor Power	22-185 KW	IEC 60034-1
Outlet Diameter	300 mm	EN 733
Rotation Speed	740-1000 rpm	IEC 60034-1

This product provides 4-pole, 6-pole and 8-pole motor options, which can be flexibly selected according to actual working conditions to ensure energy efficiency and operation stability. The specification range covers most medium-to-high lift large flow fluid transfer needs in industrial and municipal fields.

4. Performance & Indicators

4.1 What are the key performance indicators of KOLEBURG BH300L?

The key performance indicators of KOLEBURG BH300L are verified through strict laboratory tests, all meeting or exceeding international industry standards. These indicators directly determine the pump’s operation efficiency and service life. The specific indicators are shown in the following table:

Performance Indicator	Guarantee Range	Test Standard
Efficiency	≥78%	ISO 9906
Cavitation Margin	≤5.2 m	ISO 5199
Vibration Level	≤4.5 mm/s	ISO 10816-3

The excellent performance indicators ensure that the product can maintain efficient and stable operation in long-term continuous work and effectively reduce the failure rate. The adoption of IE3 high-efficiency motor also makes the product comply with global energy-saving trends, reducing energy consumption by 15-20% compared with ordinary motors.

4.2 What is the service life of KOLEBURG BH300L?

The service life of KOLEBURG BH300L is closely related to application scenarios and maintenance level. Under standard working conditions (transporting clean water with regular maintenance), the pump body’s service life is ≥8 years, and wearing parts (impeller, shaft seal) is ≥2 years. For harsh working conditions such as corrosive and abrasive media, selecting appropriate materials can extend the service life by 30-50%. The service life indicators have passed long-term operation verification, meeting the industry’s high durability requirements.

5. Systems & Supporting Equipment

5.1 Does a large flow horizontal centrifugal pump need to be integrated with other systems?

KOLEBURG BH300L adopts an independent design and can be directly connected to the existing pipeline system without integrating additional complex systems. According to actual application needs, it can be optionally equipped with supporting equipment to realize intelligent operation management. The following table lists common supporting equipment and their functions:

Supporting Equipment	Function	Compatibility
Pressure Sensor	Real-time monitoring of outlet pressure	Compatible with mainstream brands
Flow Meter	Accurate measurement of flow rate	Complies with ISO 4064 standard
Frequency Converter	Adjust rotation speed and save energy	Matching IE3 motor parameters

The pump’s matching interface is designed in accordance with international standards, ensuring good compatibility with most mainstream supporting equipment on the market, which is convenient for users to upgrade the existing system.

6. Installation, Use & Maintenance

6.1 How to correctly install a horizontal centrifugal pump?

Correct installation of KOLEBURG BH300L is the key to ensuring stable operation. The installation process must comply with API 610 standard. The core installation steps and technical requirements are shown in the following table:

Installation Step	Technical Requirement	Inspection Method
Base Leveling	Levelness ≤0.2 mm/m	Level meter measurement
Pump Body Fixing	Bolt torque meets design requirements	Torque wrench inspection
Pipeline Connection	No stress connection, no leakage	Pressure test inspection

After installation, a trial run of no less than 2 hours should be carried out. During the trial run, it is necessary to check whether the pump’s pressure, flow rate and vibration are within the normal range. For detailed installation steps, refer to the horizontal pump installation guide.

6.2 How to maintain a single helix impeller pump daily?

Daily maintenance can effectively extend the service life of KOLEBURG BH300L. The following table lists daily maintenance items, cycles and requirements, referring to API 610 maintenance specifications:

Maintenance Item	Maintenance Cycle	Maintenance Requirement
Check Bearing Temperature	Daily	Maximum temperature ≤80℃
Replace Lubricating Oil	Every 6 months	Fill to 1/3-1/2 of the bearing body
Inspect Shaft Seal Leakage	Weekly	Leakage ≤10 drops/min

Regular maintenance not only ensures the stable operation of the pump but also reduces the maintenance cost in the later period. It is recommended to establish a special maintenance record to track the maintenance status of the pump.

7. Cost & Services

7.1 What is the operating cost of KOLEBURG BH300L?

The operating cost of KOLEBURG BH300L mainly includes electricity cost, maintenance cost and wearing parts replacement cost. The specific cost composition and reference range are shown in the following table:

Cost Item	Reference Range	Influencing Factors
Electricity Cost	15-20% lower than ordinary pumps	Motor efficiency, working hours
Maintenance Cost	3-5% of the pump purchase cost per year	Working conditions, maintenance frequency
Wearing Parts Replacement Cost	5-8% of the purchase cost per year	Medium abrasiveness, operation intensity

Overall, the operating cost of the product is at a medium-low level in the industry, with high cost performance. The adoption of IE3 high-efficiency motor is the key factor to reduce electricity cost, which conforms to the global energy-saving and emission-reduction policy trends.

7.2 What after-sales services are provided for KOLEBURG BH300L?

KOLEBURG provides a comprehensive after-sales service system for BH300L series to ensure the interests of users. The specific service content is shown in the following table:

Service Item	Service Content	Service Cycle
Warranty Service	1-year free warranty (excluding wearing parts)	Within 1 year after delivery
Technical Support	On-site installation guidance, technical training	Whole service life
Fault Diagnosis	24-hour online fault diagnosis	Whole service life

8. Industry & Certifications

8.1 What international industry standards does KOLEBURG BH300L comply with?

KOLEBURG BH300L fully complies with multiple international industry standards, ensuring product quality and safety. These standards cover product design, performance testing, safety performance and other aspects. The specific compliance standards are shown in the following table:

Standard Code	Standard Name	Compliance Content
ISO 9906	Hydraulic Performance Acceptance Tests	Performance test and efficiency verification
EN 733	Industrial Horizontal Pumps	Structural design and dimensional tolerance
IEC 60034-1	Rotating Electrical Machines	Motor performance and safety

8.2 What certifications has KOLEBURG BH300L obtained?

KOLEBURG BH300L has obtained multiple authoritative international certifications, which provide reliable guarantees for the product’s application in different fields and regions. The specific certifications are shown in the following table:

Certification Name	Certification Body	Applicable Scope
CE Certification	EU Authorized Body	EU market sales and use
ISO 9906 Certification	International Organization for Standardization	Hydraulic performance compliance
FDA Certification	U.S. Food and Drug Administration	Food-grade material configurations

9. Purchase & Suppliers

9.1 Where can I purchase KOLEBURG BH300L?

KOLEBURG BH300L can be purchased through multiple official channels to ensure the authenticity of the product and complete after-sales service. The specific purchase channels are shown in the following table:

Purchase Channel	Advantage	Applicable Customer
KOLEBURG Official Website	Direct purchase, complete product information	Individual and small-batch customers
Authorized Distributors	Local service, fast delivery	Regional customers
Official Sales Team	Professional consulting, preferential prices	Bulk purchase and project customers

9.2 Does KOLEBURG BH300L support customization?

Yes, KOLEBURG BH300L supports personalized customization according to customer needs to meet the special requirements of different working conditions. The customizable items and related information are shown in the following table:

Customizable Item	Customization Range	Customization Cycle
Pump Body & Impeller Materials	304/304L, 316/316L, Duplex 2205, lined rubber, titanium alloy, etc.	2-4 weeks
Motor Configuration	22-185 KW (4/6/8-pole optional)	1-2 weeks
Seal Type	Mechanical seal, packing seal	1-2 weeks

The customization process strictly follows international design and test standards to ensure that the customized product meets specific working condition requirements. Customers can provide detailed working condition parameters to the technical team to obtain professional customization suggestions.

10. Safety & Applicability

10.1 What are the safety precautions for using KOLEBURG BH300L?

When using KOLEBURG BH300L, the following safety precautions should be noted to ensure the safety of operators and equipment: the pump should be grounded reliably to prevent electric shock; it is strictly forbidden to operate the pump without medium to avoid dry grinding damage to the impeller and seal; operators should be trained before operation to be familiar with the operation manual. For transporting flammable and explosive media, explosion-proof motor configuration should be selected. The product’s IP68 protection class ensures good waterproof performance, but it is still not allowed to be used in environments exceeding the protection scope.

10.2 How to judge whether KOLEBURG BH300L is suitable for my working condition?

To judge whether KOLEBURG BH300L is suitable for the working condition, you can focus on three key points. The specific judgment criteria are shown in the following table:

Judgment Criterion	Specific Requirement	Verification Method
Parameter Matching	Flow rate and head meet working condition requirements	Compare with working condition parameter list
Material Compatibility	Pump material is compatible with transported medium	Provide medium composition for technical verification
Environmental Adaptability	Ambient temperature and humidity meet use requirements	On-site environment investigation

If you are not sure about the matching degree, you can provide the working condition parameters to KOLEBURG’s technical team, who will provide professional matching suggestions to ensure the product can play the best performance in the actual working condition.

Do you need services?

We have the most comprehensive and professional solutions.

KOLEBURG BH300L Horizontal Centrifugal Pump Series Product

KOLEBURG BH80L Horizontal Centrifugal Pump Information

Materials & Surface Treatments

Centrifugal pump

Recommended Material Combinations

Key Product Advantages

Related products

Related products

KOLEBURG BH500SL Horizontal Centrifugal Pump Series Product

KOLEBURG BH200SL Horizontal Pump Series Product

KOLEBURG BH200L Horizontal Pump Series Product

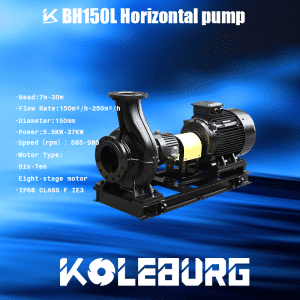

KOLEBURG BH150SL Horizontal Pump Series Product

KOLEBURG BH150L Horizontal Pump Series Product

KOLEBURG BH80L Horizontal Pump Series Product

User support

Total selection interval chart

centrifugal pump manufacturers

Non-Clogging Technology

Our advantages as a centrifugal pump manufacturer

Product application

Pump Centrifugal Parts

Frequently Asked Questions (FAQs)

Talk to Our Product Experts Today!

Related centrifugal Pump FAQS

1. Basic Definitions & Concepts

1.1 What is a horizontal centrifugal pump?

1.2 What is the working principle of a single helix pump impeller?

2. Functions & Applications

2.1 What are the main application fields of large flow horizontal centrifugal pumps?

2.2 What types of media can a single helix impeller pump handle?

3. Product Types & Specifications

3.1 What are the key specifications of KOLEBURG BH300L?

4. Performance & Indicators

4.1 What are the key performance indicators of KOLEBURG BH300L?

4.2 What is the service life of KOLEBURG BH300L?

5. Systems & Supporting Equipment

5.1 Does a large flow horizontal centrifugal pump need to be integrated with other systems?

6. Installation, Use & Maintenance

6.1 How to correctly install a horizontal centrifugal pump?

6.2 How to maintain a single helix impeller pump daily?

7. Cost & Services

7.1 What is the operating cost of KOLEBURG BH300L?

7.2 What after-sales services are provided for KOLEBURG BH300L?

8. Industry & Certifications

8.1 What international industry standards does KOLEBURG BH300L comply with?

8.2 What certifications has KOLEBURG BH300L obtained?

9. Purchase & Suppliers

9.1 Where can I purchase KOLEBURG BH300L?

9.2 Does KOLEBURG BH300L support customization?

10. Safety & Applicability

10.1 What are the safety precautions for using KOLEBURG BH300L?

10.2 How to judge whether KOLEBURG BH300L is suitable for my working condition?

quick form

Get information quickly​

Get information quickly
