KOLEBURG LV150SL Belt Pump Series Product

KOLEBURG LV150SL Belt Pump Series Product

No Clogging Centrifugal Pump

The KOLEBURG LV150SL Belt Pump Series is a high-efficiency centrifugal pump equipped with a premium Double Spiral Pump Impeller. Engineered for stable fluid transfer across a wide flow and head range (65-274 m³/h, 5.5-50 m), it excels at handling media containing fine solids and fibrous substances. Fitted with an IE3 high-efficiency motor and IP68 waterproof rating, this pump complies with global energy efficiency and safety standards, making it ideal for medium-to-large industrial, agricultural, and municipal applications.

Specification

Parameter
Specification
Model
LV150SL Belt Pump Series
Type
Double Spiral Impeller Centrifugal Pump
Flow Rate
65-274 m³/h
Head
5.5-50 m
Outlet Diameter
150 mm
Motor Power
3-55 KW (4/6/8/12-pole)
Rotation Speed
490-1450 rpm
Protection/Insulation/Efficiency
IP68 / Class F / IE3



Get a quote quickly
  • ISO、CE、EAC
  • L/C Accepted
  • 7*24H Response
  • Accept customization

KOLEBURG LV150SL Series Product Information

Model & Information

Model parameter table, performance curves, drawings

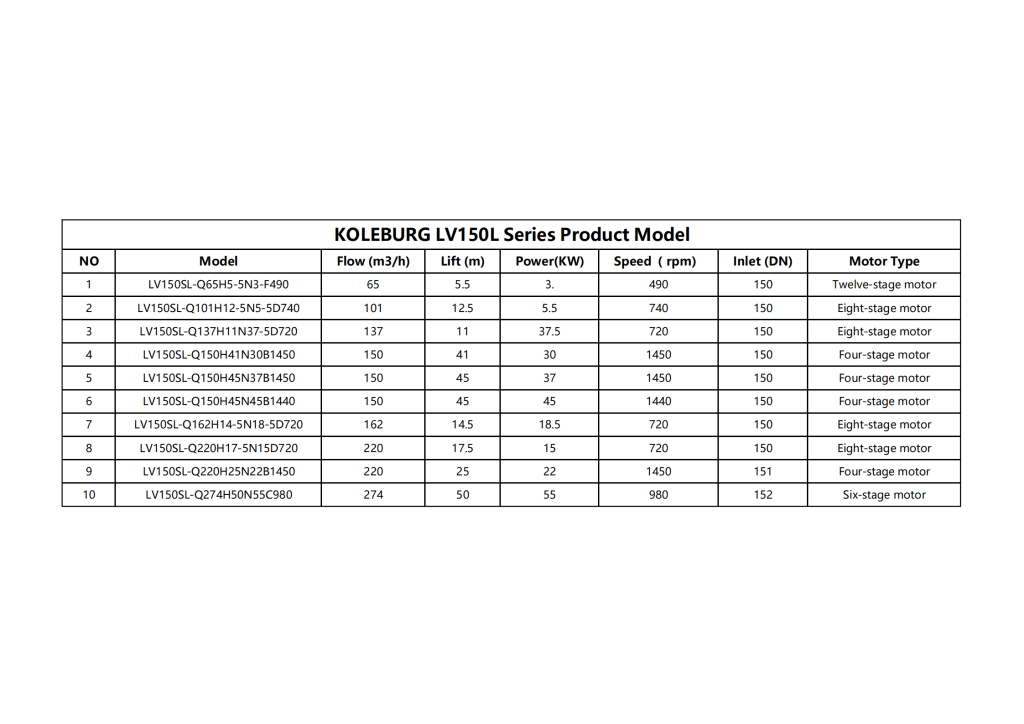

KOLEBURG LV150L Series Product Model
NOModelFlow (m3/h)Lift (m)Power(KW)Speed（ rpm）Inlet (DN)Motor Type
1 LV150SL-Q65H5-5N3F490655.53490150Twelve-stage motor
2 LV150SL-Q101H12-5N5-5D74010112.55.5740150Eight-stage motor
3 LV150SL-Q137H11N37-5D7201371137.5720150Eight-stage motor
4 LV150SL-Q150H41N30B145015041301450150Four-stage motor
5 LV150SL-Q150H45N37B145015045371450150Four-stage motor
6 LV150SL-Q150H45N45B144015045451440150Four-stage motor
7 LV150SL-Q162H14-5N18-5D72016214.518.5720150Eight-stage motor
8 LV150SL-Q220H17-5N15D72022017.515720150Eight-stage motor
9 LV150SL-Q220H25N22B145022025221450151Four-stage motor
10 LV150SL-Q274H50N55C9802745055980152Six-stage motor



I am doing centrifugal pump product design on the computer_

        Tailored to your exact needs, our centrifugal pumps are engineered with application-specific parameters to deliver optimized efficiency, durability, and operational reliability.

Get customized solutions

Materials & Surface Treatments

Pump body & impeller

KOLEBURG LV150SL Belt Pump Series Product pump body and pump impeller main materials and heat treatment process

Pump Casing Material & Treatment

Material Type
Key Suitability
Heat Treatment & Surface Processing
Cast Iron
General water/sewage (cost-efficient)
Annealing; 200-300μm epoxy coating (ISO 12944)
316/316L
Corrosive industrial/food fluids
Solution treatment; passivation (NACE MR0175)
Rubber Lined
Mildly abrasive media
No heat treatment; rubber impact absorption



Impeller Materials and Handling

Material Type
Key Suitability
Heat Treatment & Surface Processing
ZG/20Cr13
Wear-prone media
Quenching + low-temp tempering (HRC 45-50); tungsten carbide hardfacing
Duplex 2205
High-strength corrosive scenarios
Solution annealing (ASTM A995)
Titanium Alloy
Strongly corrosive media
Solution treatment; passivation



Centrifugal pump

Application industry

KOLEBURG LV150SL Belt Pump Series Product, industry applications and advantages

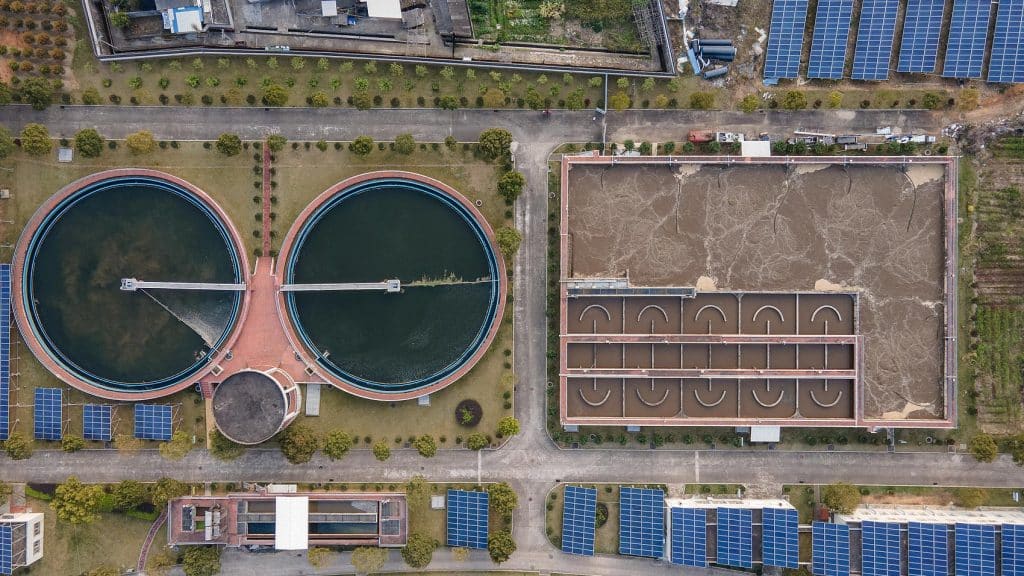

Aerial photography of the solar sewage treatment plant

sewage treatment plant

Ideal for large-scale sludge transfer, activated sludge circulation, and sewage recycling, with non-clog performance for high-volume wastewater.

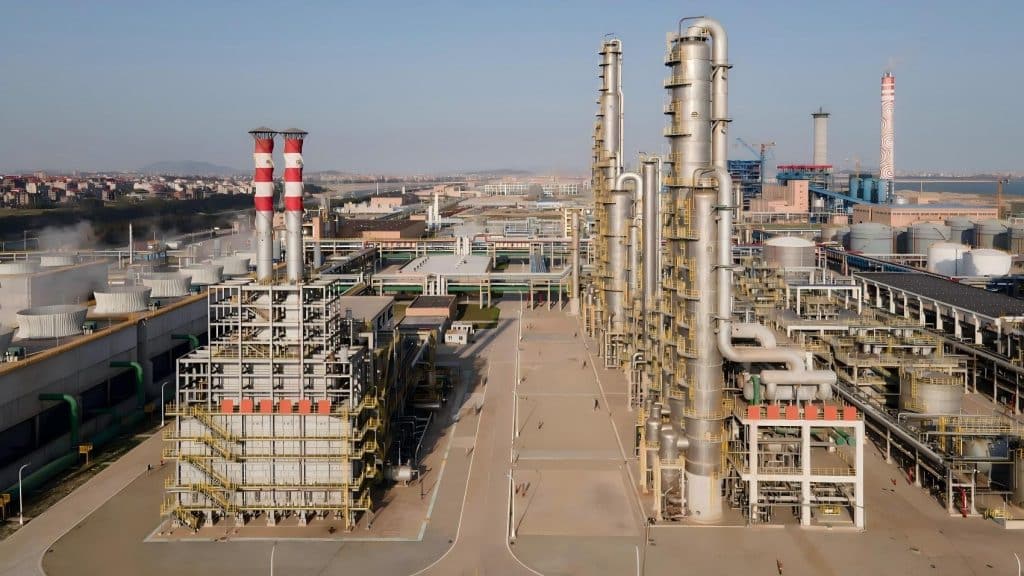

Aerial view of chemical plant chimney 01
Handles low-to-medium viscosity corrosive fluids, adapting to harsh industrial environments.
Solar agricultural irrigation
Effective for large-area farm irrigation and breeding plant wastewater drainage.

Recommended Material Combinations

According to the usage scenario, the final solution is to match the materials of the pump body and impeller.

Application Scenario
Pump Body Material
Impeller Material
Combination Rationale
Sewage Treatment Plant
Cast Iron (epoxy coated)
ZG/20Cr13 (quenched)
Cost-effective wear/corrosion balance
Food Processing
304/304L
304/304L
Hygienic corrosion protection (ASTM A240)
Chemical Plant
316/316L
316/316L
Full corrosion resistance for chemical media
Agriculture
Cast Iron
ZG/20Cr13
Durable & cost-efficient for irrigation



Key Product Advantages

    1. Superior Anti-Clog Performance: The proprietaryDouble Spiral Pump Impeller features dual spiral channels that smoothly guide solids and fibers through the 150mm outlet, reducing clogging failures by over 80% versus standard impellers (per third-party testing).
    2. Enhanced Durability with Customizable Configurations: Offers a full range of high-quality materials (from cast iron to titanium alloy) paired with professional heat treatment processes, tailored to diverse media demands and compliant with global standards (ASTM, NACE), extending service life to 6-8 years.
    3. Efficient & Flexible Operation: IE3 motors cut energy costs by 15-20% (per IEC 60034-30-1 standards), while IP68 protection ensures safe operation in wet environments. The multi-pole motor (4/6/8/12-pole) allows precise speed adjustment (490-1450 rpm) to match various flow-head needs, boosting operational flexibility.
Black Belt Drive Pump

Related products

Related products

The world’s leading manufacturer of non-clogging pumps

Get a quick quote

User support

Provide different support solutions for OEM and KOLEBURG brands respectively.

I need OEM

Design Your Brand, Create Your Value, And Be The Best

Get services

I Want KOLEBURG brands

Professional technology. Unity, excellence, influence. Excellent service.

Get services

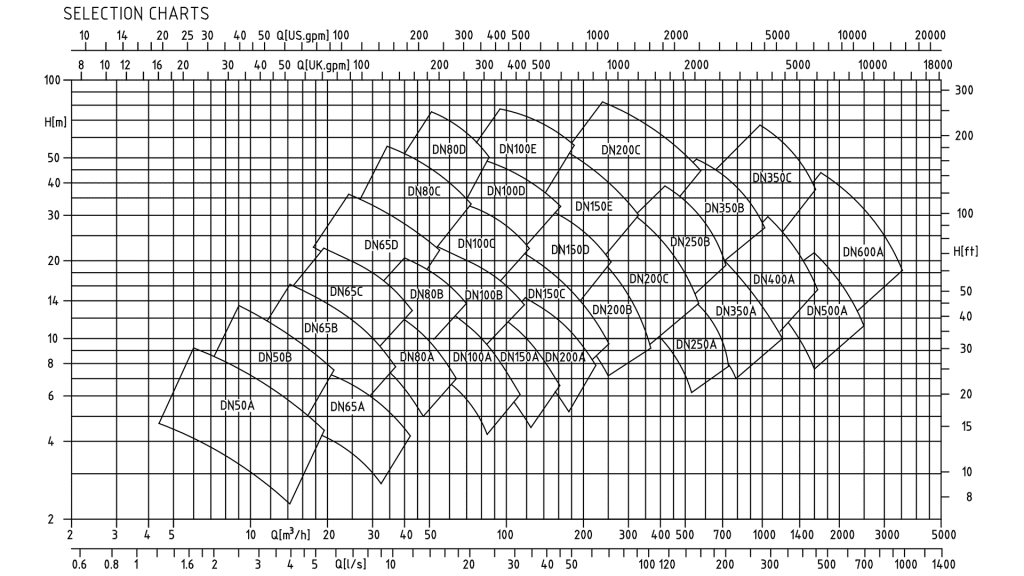

Total selection interval chart

Comprehensive reference

Provide you with a multi-caliber selection range reference

Total selection interval chart
Total selection interval chart​

submersible pump manufacturers

Our advantages

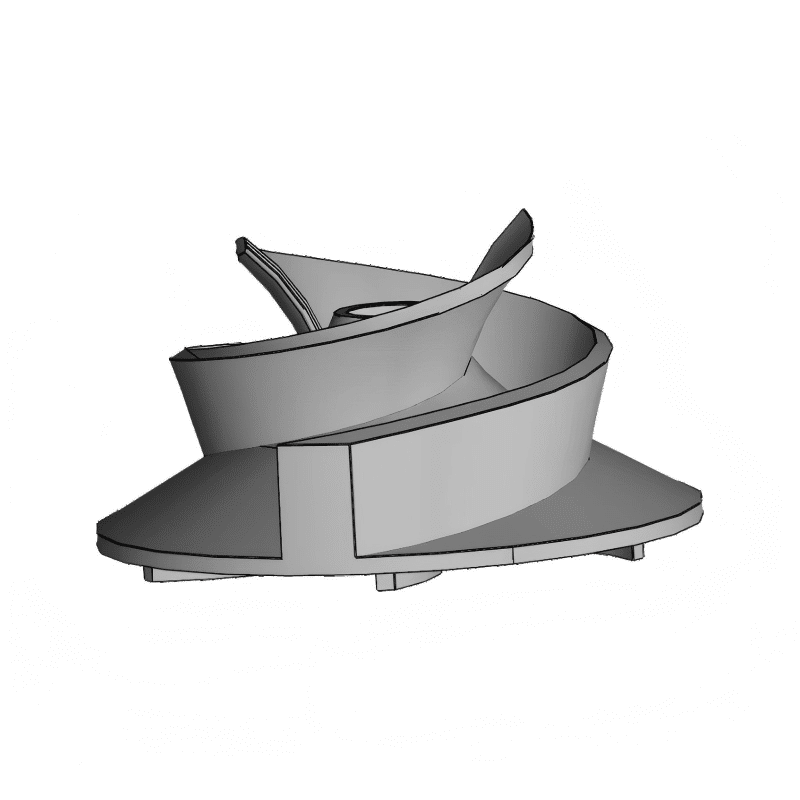

Double Spiral Pump Impeller

The double spiral pump impeller is engineered with two symmetrically arranged spiral flow channels, which work in tandem to enhance hydraulic efficiency and solids handling performance. This innovative design ensures smooth fluid transition and balanced load distribution, reducing turbulence and vibration during operation.

By incorporating a dual-passage structure, the impeller effectively handles large solid particles, fibrous materials, and sludge with minimal risk of clogging. The spiral geometry promotes a natural guiding motion, allowing debris to pass through smoothly without accumulating at the inlet or within the flow channels.

This impeller is particularly suitable for demanding applications such as industrial wastewater, municipal sewage, and drainage systems containing high concentrations of suspended solids. Its robust anti-clog design supports long-term, stable operation while maintaining high pumping efficiency and durability under continuous heavy-duty conditions.

Double Spiral Pump Impeller
Double Spiral Pump Impeller

Our advantages as a centrifugal pump manufacturer

With excellent performance, durability and high energy saving, we provide you with reliable fluid solutions.learn more

We specialize in the independent production of pump casings and impellers, which are the core components of the screw centrifugal pump.

  • The pump body is precisely cast and machined in-house, ensuring excellent dimensional accuracy and long-term durability.

  • The impeller adopts high-efficiency spiral and centrifugal geometry, manufactured using CNC machining and dynamic balancing to guarantee smooth operation and superior hydraulic performance.

Electric water pump isolated on the white background 3d illustration

Cooperation Advantages

Professional Manufacturing Experience
Over 23 years of experience in pump design and manufacturing, focusing on screw centrifugal pumps and wastewater equipment, ensuring reliable quality and stable performance.

Independent Core Component Production
We manufacture pump casings and impellers in-house, using advanced CNC machining and dynamic balancing technology, to ensure precise assembly and high hydraulic efficiency.

koleburg cooperation company logo01

We provide custom-designed pump solutions tailored to the specific needs of each client.
Our professional engineering team can adjust key parameters — including flow rate, head, material, inlet/outlet interface, and sealing method — to achieve optimal performance for different working conditions.

Through advanced CFD hydraulic optimization and precision manufacturing, we ensure every customized pump delivers high efficiency, reliability, and durability even under complex environments.

Electric water pump isolated on the white background 3d illustration

Product application

Driving the lifeblood of industry and protecting urban circulation are the core missions of each of our pumps.

Eco Water Solutions
Environmental Protection
Efficient treatment of sewage and sludge with non-clog impeller technology
Read More
Reliable Wastewater Handling
Image accordion content
Continuous and stable drainage for factories and processing lines.
Read More
Cooling & Drainage Efficiency
Energy & Power
Safe cooling water and drainage solutions for power plants.
Read More
Heavy-Duty Dewatering
Special Engineering
Designed for tunnels, mines, and construction with high solid content.
Read More

Pump Centrifugal Parts

Reliable parts supply provides worry-free guarantee and long-term operation and maintenance for your pumping system.

Pump body
mechanical seal01
mechanical seal
pump bearings
Bearing
Pump O-ring
O-Ring
pump motor
Motor
Special electrical cabinet for centrifugal pump
Electrical cabinet
pump automatic coupler
automatic coupler
pump shaft
pump shaft
pump Coupling
Coupling
Other pump accessories
Other

Frequently Asked Questions (FAQs)

1. How do I select the right centrifugal pump for my application?

Our engineering team provides free, expert selection support. Simply share your key parameters—such as fluid type, required flow rate (e.g., GPM or m³/h), total head (e.g., feet or meters), temperature, and system specifications—and we will recommend the optimal pump model for maximum efficiency and reliability.

2. What is your standard lead time for orders?

For standard models, we often have stock available or can offer short production cycles. The exact lead time depends on the specific pump model and our current order schedule. We understand project urgency and offer expedited production options for critical needs whenever possible.

3. What kind of warranty and after-sales support do you provide?

All our pumps come with a comprehensive warranty. We are committed to your long-term satisfaction through a robust support network, offering rapid technical assistance, readily available spare parts, and expert maintenance services to minimize downtime.

4. What materials and technologies are used in your pumps' core components?

The longevity of critical parts like impellers and mechanical seals is our priority. We utilize high-performance materials (e.g., stainless steel, cast iron) and precision manufacturing, including dynamic balancing. Our mechanical seals are sourced from leading suppliers to ensure durability in demanding conditions.

Male designer with hands on hips01

Talk to Our Product Experts Today!

Contact us

Related Submersible Pump FAQS

1. Basic Definitions and Core Concepts

1.1 What is a double spiral impeller centrifugal pump?

A double spiral impeller centrifugal pump is a high-efficiency fluid-handling device designed for medium-to-large flow transfer, featuring a Double Spiral Pump Impeller to minimize clogging. It integrates key centrifugal pump components such as pump body and mechanical seal, complying with ISO 13709 (hydraulic performance) and IEC 60529 (IP rating) global standards. KOLEBURG LV150SL is a typical representative optimized for wide flow-head adaptation.

1.2 How does a double spiral impeller work in centrifugal pumps?

The Double Spiral Pump Impeller uses dual spiral channels to guide solids and fibrous media smoothly through the volute. When the motor drives the impeller to rotate at 490-1450 rpm (4/6/8/12-pole adjustable), it generates stable centrifugal force to suck in fluid and lift it to 5.5-50 m head, achieving 65-274 m³/h flow. This design reduces clogging failures by over 80% compared to standard impellers (third-party tested), aligning with EN 733 flow rate standards.

2. Functions and Applications

2.1 What are the core functions of medium-to-large flow centrifugal pumps?

Medium-to-large flow centrifugal pumps like KOLEBURG LV150SL mainly realize three core functions: stable transfer of 65-274 m³/h fluid, flexible adaptation to 5.5-50 m head requirements, and reliable operation in solid-laden media. They combine anti-clog performance with energy efficiency, meeting fluid management needs of industrial, agricultural, and municipal medium-to-large projects.

2.2 Which application scenarios are suitable for double spiral impeller centrifugal pumps?

Based on the pump’s performance characteristics, the following high-demand scenarios are optimal, all complying with local environmental regulations and ISO 13709 standards:
Scenario
Handled Media
Core Advantage
Sewage Treatment Plant
Raw sewage, activated sludge
Anti-clog & stable flow
Food Processing
Process water, organic wastewater
Hygienic material options
Agriculture
Irrigation water, breeding wastewater
Durable & energy-efficient
Chemical Plant
Low-viscosity corrosive fluids
Corrosion-resistant configurations

3. Product Types and Specifications

3.1 What are the key specifications of KOLEBURG LV150SL?

KOLEBURG LV150SL is a belt-driven double spiral impeller centrifugal pump with wide parameter adaptability, and its specifications comply with IEC 60034-1 and DIN 24256 standards:
Parameter
Specification
Compliance Standard
Flow Rate
65-274 m³/h
ISO 13709
Head
5.5-50 m
EN 733
Outlet Diameter
150 mm
DIN 24256
Motor Power
3-55 KW
IEC 60034-1
Motor Pole
4/6/8/12-pole
IEC 60034-1
Rotation Speed
490-1450 rpm
IEC 60034-1
Protection/Insulation
IP68 / Class F
IEC 60529 / IEC 60085

3.2 How does motor pole configuration affect pump performance?

The 4/6/8/12-pole motor of KOLEBURG LV150SL enables precise speed adjustment to match different working conditions: 4-pole (1450 rpm) optimizes maximum flow (274 m³/h), 6/8-pole balances flow and head, and 12-pole (490 rpm) enhances torque for viscous media. All motors adopt IE3 efficiency grade, complying with IEC 60034-30-1 to reduce energy consumption by 15-20% compared to IE2 motors.

4. Performance and Indicators

4.1 What is the service life of KOLEBURG LV150SL?

Under normal operation and proper maintenance, KOLEBURG LV150SL has a service life of 6-8 years, exceeding the 3-5 year average of industry peers. This is mainly due to high-qualitypump materials and professional heat treatment processes, such as quenching and tempering of ZG/20Cr13 impellers.

4.2 How do material and heat treatment affect pump performance?

Reasonable material selection and heat treatment directly determine the pump’s corrosion resistance, wear resistance and service life. The following are the core configurations for KOLEBURG LV150SL:

4.2.1 Pump Body Material & Heat Treatment

Material
Suitability
Treatment Process
Cast Iron
General water/sewage
Annealing + epoxy coating (ISO 12944)
316/316L
Corrosive media
Solution treatment + passivation (NACE MR0175)
Rubber Lined
Mildly abrasive media
No heat treatment (impact absorption)

4.2.2 Impeller Material & Heat Treatment

Material
Suitability
Treatment Process
ZG/20Cr13
Wear-prone media
Quenching + low-temp tempering (HRC 45-50)
Duplex 2205
High-strength corrosive media
Solution annealing (ASTM A995)
Titanium Alloy
Strongly corrosive media
Solution treatment + passivation
These configurations ensure the pump can withstand 5.5-50 m head pressure and medium-to-large flow impact, maintaining stable performance in harsh environments.

5. System and Supporting Equipment

5.1 What supporting equipment is required for KOLEBURG LV150SL?

KOLEBURG LV150SL requires minimal supporting equipment for deployment, no complex system integration (e.g., RO systems) is needed, which is suitable for quick installation in medium-to-large projects:
Supporting Equipment
Function
Remarks
Special Electrical Cabinet
Motor control & protection
Mandatory
Flow/Pressure Sensor
Parameter monitoring
Mandatory
Automatic Coupler
Quick maintenance & pipe alignment
Optional

6. Installation, Operation and Maintenance

6.1 How to correctly install KOLEBURG LV150SL?

Proper installation ensures pump performance and safety, which must comply with IEC 60364 (electrical) and EN 12050 (fluid systems) standards. The key steps are as follows:
  1. Secure the pump on a reinforced base to withstand vibration during high-flow operation (up to 274 m³/h).
  2. Use automatic coupler to align the pump with 150 mm discharge pipes, avoiding flow restriction.
  3. Verify bearing alignment and mechanical seal tightness to prevent leaks.

6.2 What are the key maintenance tasks and intervals?

Routine maintenance of KOLEBURG LV150SL aligns with ISO 14179 (pump maintenance) standards, which can effectively extend service life to 6-8 years:
Maintenance Task
Interval
Details
Mechanical Seal Inspection
Quarterly
Check for leakage; replace every 2-3 years
Bearing Lubrication
Semi-annually
Apply high-speed compatible grease
Impeller Cleaning & Inspection
Annually
Remove debris; check wear of hardfacing

7. Cost and Services

7.1 What factors affect the operational cost of KOLEBURG LV150SL?

The operational cost of KOLEBURG LV150SL is mainly driven by three factors, and its total lifecycle cost is 12-18% lower than that of comparable products:
Cost Factor
Impact Degree
Optimization Measure
Energy Consumption
High
IE3 motor reduces 15-20% energy use
Maintenance Cost
Medium
High-quality materials reduce part replacement frequency
Downtime Loss
Medium
Anti-clog design minimizes operational interruptions

7.2 What after-sales services are provided for KOLEBURG LV150SL?

KOLEBURG provides comprehensive after-sales support to ensure minimal downtime for medium-to-large projects:
  • 12-month standard warranty (extendable to 24 months)
  • On-site installation and operation training
  • Global OEM parts supply (48-hour delivery in key markets)
  • 24/7 professional technical support

8. Industry Standards and Certifications

8.1 What international standards does KOLEBURG LV150SL comply with?

KOLEBURG LV150SL meets multiple critical global standards, ensuring product performance, safety and reliability:
Standard Type
Standard Number
Core Requirement
Hydraulic Performance
ISO 13709
Ensure high-flow efficiency and stability
Motor Efficiency
IEC 60034-30-1
Comply with IE3 high efficiency grade
Waterproof/Insulation
IEC 60529 / IEC 60085
Guarantee IP68/Class F protection
Pressure Equipment
EN 12165
Ensure pump body structural integrity

8.2 What certifications validate the quality of KOLEBURG LV150SL?

Key certifications of KOLEBURG LV150SL enhance global market access and customer trust, reinforcing EEAT credibility:
  • CE Certification (EU Machinery/Low Voltage Directives)
  • ISO 9001 Quality Management System Certification
  • NACE MR0175 Certification (corrosion-resistant materials)

9. Purchase and Suppliers

9.1 Where can I purchase KOLEBURG LV150SL?

KOLEBURG LV150SL is available through multiple official channels to ensure product authenticity and after-sales guarantee:
Standard models ship within 10-20 working days globally, ensuring timely delivery for project construction.

9.2 Does KOLEBURG LV150SL support customization?

Yes, KOLEBURG LV150SL supports customization for specific medium-to-large project needs, and all custom solutions are validated via ISO 10816 vibration testing:
Customization Item
Available Options
Quotation Cycle
Material Upgrade
Titanium Alloy, Duplex 2205, etc.
Within 3 working days
Motor Configuration
Pole number, power adjustment
Within 3 working days
Surface Treatment
Special coating for harsh environments
Within 3 working days

10. Safety and Applicability

10.1 What does IP68 waterproof rating mean for centrifugal pumps?

IP68 (IEC 60529) is the highest waterproof rating for electrical equipment, which means KOLEBURG LV150SL can be continuously submerged in water and operate normally without electrical hazards. This feature is critical for wet environments such as sewage treatment plants and outdoor irrigation sites, ensuring safe operation of medium-to-large projects.

10.2 What media conditions are suitable for KOLEBURG LV150SL?

KOLEBURG LV150SL has strong media adaptability, and the recommended media conditions are as follows. For special media, customized material configurations are available:
Media Parameter
Suitable Range
Special Suggestion
pH Value
4-10
＞10 or ＜4: use 316/316L
Solid Content
≤15%
＞15%: rubber-lined pump body
Viscosity
≤50 mPa·s
＞50 mPa·s: 12-pole motor
Suitable media include raw sewage, irrigation water, food process water and low-viscosity corrosive fluids, complying with ASTM A240 standards for material compatibility.
Table of Contents
Do you need services?

We have the most comprehensive and professional solutions.

Get a quote
滚动至顶部

quick form

Your Role
名称
Drag & Drop Files, Choose Files to Upload
*Add your use case or other requirements.

Get information quickly​
