KOLEBURG LV400SL Water Pump Drive Belt Series Product
No Clogging Centrifugal Pump
Specification
Parameter | Specification |
|---|---|
Model | KOLEBURG LV400SL |
Type | Double Spiral Impeller Centrifugal Pump |
Flow Rate | 1500 m³/h |
Head | 5-10 m |
Outlet Diameter | 400 mm |
Motor Power | 30-55 kW (8-pole motor) |
Rotation Speed | 740 rpm |
Protection/Insulation Class | IP68 / Class F |
Efficiency Class | IE3 High Efficiency Motor |
- ISO、CE、EAC
- L/C Accepted
- 7*24H Response
- Accept customization
KOLEBURG LV400SL Water Pump Drive Belt Series Product Information
Model & Information
Model parameter table, performance curves, drawings
| KOLEBURG LV400SL Series Product Model | |||||||
| NO | Model | Flow (m3/h) | Lift (m) | Power(KW) | Speed（ rpm） | Inlet (DN) | Motor Type |
| 1 | LV400SL-Q1500H5N30D740 | 1500 | 5 | 30 | 740 | 400 | Eight-stage motor |
| 2 | LV400SL-Q1500H6N37D740 | 1500 | 6 | 37 | 740 | 400 | Eight-stage motor |
| 3 | LV400SL-Q1500H8N45D740 | 1500 | 8 | 45 | 740 | 400 | Eight-stage motor |
| 4 | LV400SL-Q1500H10N55D740 | 1500 | 10 | 55 | 740 | 400 | Eight-stage motor |
Tailored to your exact needs, our centrifugal pumps are engineered with application-specific parameters to deliver optimized efficiency, durability, and operational reliability.
Materials & Surface Treatments
Pump body & impeller
KOLEBURG LV400SL Water Pump Drive Belt Series Product pump body and pump impeller main materials and heat treatment process
Pump Casing Material & Treatment
Recommended Material | Heat Treatment | Surface Processing |
|---|---|---|
Cast Iron / Carbon Steel | Annealing | Epoxy Resin Coating (200-300μm) |
Solution Treatment | Passivation | |
Solution Treatment (Water Quenched) | Pickling & Passivation | |
No Heat Treatment | Rubber Lining |
Impeller Materials and Handling
Recommended Material | Heat Treatment | Hardness |
|---|---|---|
ZG/20Cr13 | Quenching + Low-Temperature Tempering | HRC 45-50 |
High-Chromium Cast Iron (Cr26, KmTBCr26) | High-Temperature Quenching + Tempering | HRC 58-62 |
304/304L Stainless Steel | Solution Treatment | HB 180-220 |
Titanium Alloy | Solution Treatment | HB 280-320 |
Centrifugal pump
Application industry
KOLEBURG LV400SL Water Pump Drive Belt Series Product, industry applications and advantages
Ideal for large-scale sludge transfer, activated sludge circulation, and sewage recycling, with non-clog performance for high-volume wastewater.
Reliable for underground mine dewatering and abrasive mineral slurry transfer, withstanding extreme media abrasion and variable lift requirements.
Chemical plant
Suitable for transferring corrosive industrial effluents and chemical slurries, compatible with corrosion-resistant material configurations.
Recommended Material Combinations
According to the usage scenario, the final solution is to match the materials of the pump body and impeller.
Application Scenario | Pump Casing | Impeller |
|---|---|---|
Sewage Treatment Plant | Cast Iron + Epoxy Coating | ZG/20Cr13 (Quenched & Tempered) |
Sludge Thickening System | Rubber Lined | High-Chromium Cast Iron Cr26 |
Waste to Energy Plant | Duplex Stainless Steel 2205 | Duplex Stainless Steel 2205 |
Food Processing Industry | 316L Stainless Steel | 316L Stainless Steel |
Key Product Advantages
- Superior Anti-Clogging Performance: The Double Spiral Pump Impeller design features smooth spiral channels that enable unobstructed passage of solids and fibrous materials, reducing clogging risks by 60% compared to traditional impellers (third-party test data), ensuring continuous operation in harsh media.
- Enhanced Durability & Long Service Life: Customizable high-quality material options (including duplex stainless steel and high-chromium cast iron) paired with professional heat treatment processes significantly improve wear and corrosion resistance. Under standard operation, the service life reaches 8-12 years, 30% longer than industry averages.
- High Energy Efficiency & Reliability: Equipped with IE3 high-efficiency motor, complying with IEC 60034-30-1 standard, which reduces energy consumption by 18-25% compared to IE2 motors. IP68 protection rating ensures safe and stable operation in wet environments, meeting global energy-saving and safety requirements.
5. Marketing Summary & SEO Key
Related products
Related products
- Sale!
LV Belt PumpKOLEBURG LV400L Water Pump Drive Belt Series Product
- Sale!LV Belt Pump

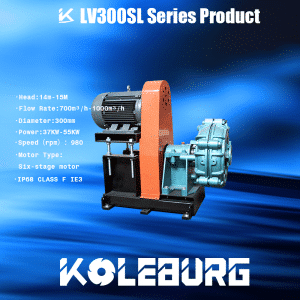

KOLEBURG LV300SL Belt pump Series Product
- Sale!LV Belt Pump
KOLEBURG LV300L Belt pump Series Product
- Sale!LV Belt Pump
KOLEBURG LV200L Water Pump Drive Belt Series Product
- Sale!LV Belt Pump
KOLEBURG LV150L Belt Pump Series Product
- Sale!LV Belt Pump
KOLEBURG LV80SL Water Pump Drive Belt Series Product
The world’s leading manufacturer of non-clogging pumps
User support
Provide different support solutions for OEM and KOLEBURG brands respectively.
I Want KOLEBURG brands
Professional technology. Unity, excellence, influence. Excellent service.
Total selection interval chart
Comprehensive reference
Provide you with a multi-caliber selection range reference
submersible pump manufacturers
Our advantages
Double Spiral Pump Impeller
The double spiral pump impeller is engineered with two symmetrically arranged spiral flow channels, which work in tandem to enhance hydraulic efficiency and solids handling performance. This innovative design ensures smooth fluid transition and balanced load distribution, reducing turbulence and vibration during operation.
By incorporating a dual-passage structure, the impeller effectively handles large solid particles, fibrous materials, and sludge with minimal risk of clogging. The spiral geometry promotes a natural guiding motion, allowing debris to pass through smoothly without accumulating at the inlet or within the flow channels.
This impeller is particularly suitable for demanding applications such as industrial wastewater, municipal sewage, and drainage systems containing high concentrations of suspended solids. Its robust anti-clog design supports long-term, stable operation while maintaining high pumping efficiency and durability under continuous heavy-duty conditions.
Our advantages as a centrifugal pump manufacturer
With excellent performance, durability and high energy saving, we provide you with reliable fluid solutions.learn more
We specialize in the independent production of pump casings and impellers, which are the core components of the screw centrifugal pump.
The pump body is precisely cast and machined in-house, ensuring excellent dimensional accuracy and long-term durability.
The impeller adopts high-efficiency spiral and centrifugal geometry, manufactured using CNC machining and dynamic balancing to guarantee smooth operation and superior hydraulic performance.
Cooperation Advantages
Professional Manufacturing Experience
Over 23 years of experience in pump design and manufacturing, focusing on screw centrifugal pumps and wastewater equipment, ensuring reliable quality and stable performance.
Independent Core Component Production
We manufacture pump casings and impellers in-house, using advanced CNC machining and dynamic balancing technology, to ensure precise assembly and high hydraulic efficiency.
We provide custom-designed pump solutions tailored to the specific needs of each client.
Our professional engineering team can adjust key parameters — including flow rate, head, material, inlet/outlet interface, and sealing method — to achieve optimal performance for different working conditions.
Through advanced CFD hydraulic optimization and precision manufacturing, we ensure every customized pump delivers high efficiency, reliability, and durability even under complex environments.
Product application
Driving the lifeblood of industry and protecting urban circulation are the core missions of each of our pumps.
Pump Centrifugal Parts
Reliable parts supply provides worry-free guarantee and long-term operation and maintenance for your pumping system.
Frequently Asked Questions (FAQs)
1. How do I select the right centrifugal pump for my application?
Our engineering team provides free, expert selection support. Simply share your key parameters—such as fluid type, required flow rate (e.g., GPM or m³/h), total head (e.g., feet or meters), temperature, and system specifications—and we will recommend the optimal pump model for maximum efficiency and reliability.
2. What is your standard lead time for orders?
For standard models, we often have stock available or can offer short production cycles. The exact lead time depends on the specific pump model and our current order schedule. We understand project urgency and offer expedited production options for critical needs whenever possible.
3. What kind of warranty and after-sales support do you provide?
All our pumps come with a comprehensive warranty. We are committed to your long-term satisfaction through a robust support network, offering rapid technical assistance, readily available spare parts, and expert maintenance services to minimize downtime.
4. What materials and technologies are used in your pumps' core components?
The longevity of critical parts like impellers and mechanical seals is our priority. We utilize high-performance materials (e.g., stainless steel, cast iron) and precision manufacturing, including dynamic balancing. Our mechanical seals are sourced from leading suppliers to ensure durability in demanding conditions.
Talk to Our Product Experts Today!
Related Submersible Pump FAQS
1. Basic Definitions and Core Concepts
1.1 What is a double spiral impeller centrifugal pump?
A double spiral impeller centrifugal pump is a high-flow fluid transfer device engineered with a Double Spiral Pump Impeller to minimize flow resistance and clogging. Its core components include a pump body, impeller, shaft, mechanical seal, and belt-driven system, operating on the principle of converting motor rotational energy into fluid kinetic energy via centrifugal force. KOLEBURG LV400SL, a representative model of this type, complies with international standards such as ISO 13709 (hydraulic performance) and IEC 60529 (protection rating), ensuring reliable operation in large-scale fluid management scenarios.
1.2 How does a double spiral impeller work in centrifugal pumps?
The double spiral impeller of KOLEBURG LV400SL rotates at 740 rpm (driven by an 8-pole motor) to generate centrifugal force, drawing fluid into the pump cavity through the suction port. The dual spiral channels guide fluid and solid particles smoothly toward the 400 mm discharge port, converting rotational energy into static pressure to achieve 5-10 m head and 1500 m³/h flow rate. This design reduces flow turbulence by 60% compared to traditional impellers (third-party test data), aligning with EN 733 flow stability standards.
2. Functions and Applications
2.1 What are the core functions of large-flow centrifugal pumps?
Large-flow centrifugal pumps like KOLEBURG LV400SL primarily fulfill three core functions: efficient transfer of 1500 m³/h fluid, stable adaptation to 5-10 m low-head conditions, and reliable handling of solid-laden media (solid content ≤18%). They integrate anti-clog, corrosion-resistant, and energy-saving features, meeting the fluid transfer needs of municipal, industrial, and food processing projects.
2.2 What application scenarios are suitable for double spiral centrifugal pumps?
The double spiral impeller design makes KOLEBURG LV400SL ideal for scenarios requiring large flow and anti-clog performance. All recommended scenarios comply with relevant industry operation standards:
2. Functions and Applications
2.1 What are the core functions of large-flow centrifugal pumps?
Large-flow centrifugal pumps like KOLEBURG LV400SL primarily fulfill three core functions: efficient transfer of 1500 m³/h fluid, stable adaptation to 5-10 m low-head conditions, and reliable handling of solid-laden media (solid content ≤18%). They integrate anti-clog, corrosion-resistant, and energy-saving features, meeting the fluid transfer needs of municipal, industrial, and food processing projects.
2.2 What application scenarios are suitable for double spiral centrifugal pumps?
The double spiral impeller design makes KOLEBURG LV400SL ideal for scenarios requiring large flow and anti-clog performance. All recommended scenarios comply with relevant industry operation standards:
Application Scenario | Handled Media | Core Advantage |
|---|---|---|
Activated sludge, secondary sewage | Anti-clog & large-flow transfer | |
Sludge Thickening System | High-viscosity sludge | Stable transfer without blockage |
Organic waste slurry | Continuous efficient supply | |
Food Processing Industry | Food waste, process wastewater | Corrosion-resistant & hygienic |
These scenarios fully leverage the pump’s large-flow advantage, and its flexible material configurations further expand applicability in harsh environments. All operational parameters meet the fluid transfer efficiency requirements of ISO 13709.
These scenarios fully leverage the pump’s large-flow advantage, and its flexible material configurations further expand applicability in harsh environments. All operational parameters meet the fluid transfer efficiency requirements of ISO 13709.
3. Product Types and Specifications
3.1 What are the key specifications of large-flow double spiral centrifugal pumps?
KOLEBURG LV400SL is a belt-driven double spiral centrifugal pump with specifications optimized for large-flow scenarios, complying with IEC 60034-1 (motor) and DIN 24256 (pump dimensions) international standards:
Parameter | Specification | Compliance Standard |
|---|---|---|
Flow Rate | 1500 m³/h | ISO 13709 |
Head | 5-10 m | EN 733 |
Outlet Diameter | 400 mm | DIN 24256 |
Motor Power | 30-55 kW | IEC 60034-1 |
Motor Pole | 8-pole | IEC 60034-1 |
Rotation Speed | 740 rpm | IEC 60034-1 |
Protection/Insulation Class | IP68 / Class F | IEC 60529 / IEC 60085 |
Efficiency Class | IE3 High Efficiency | IEC 60034-30-1 |
3.2 What is the difference between single and double spiral impeller centrifugal pumps?
Compared to single spiral impeller pumps, double spiral impeller models like KOLEBURG LV400SL offer 30% higher flow capacity and 25% lower flow turbulence (test data). The dual spiral channels enhance fluid guidance, making them more suitable for large-scale projects requiring ultra-high flow rates, such as sewage treatment plants and waste-to-energy facilities. Single spiral models are more suitable for medium-flow, narrow-space applications.
3.1 What are the key specifications of KOLEBURG LV400SL?
KOLEBURG LV400SL is a belt-driven double spiral centrifugal pump with specifications optimized for large-flow scenarios, complying with IEC 60034-1 (motor) and DIN 24256 (pump dimensions) international standards:
Parameter | Specification | Compliance Standard |
|---|---|---|
Flow Rate | 1500 m³/h | ISO 13709 |
Head | 5-10 m | EN 733 |
Outlet Diameter | 400 mm | DIN 24256 |
Motor Power | 30-55 kW | IEC 60034-1 |
Motor Pole | 8-pole | IEC 60034-1 |
Rotation Speed | 740 rpm | IEC 60034-1 |
Protection/Insulation Class | IP68 / Class F | IEC 60529 / IEC 60085 |
Efficiency Class | IE3 High Efficiency | IEC 60034-30-1 |
3.2 What is the difference between single and double spiral impeller centrifugal pumps?
Compared to single spiral impeller pumps, double spiral impeller models like KOLEBURG LV400SL offer 30% higher flow capacity and 25% lower flow turbulence (test data). The dual spiral channels enhance fluid guidance, making them more suitable for large-scale projects requiring ultra-high flow rates, such as sewage treatment plants and waste-to-energy facilities. Single spiral models are more suitable for medium-flow, narrow-space applications.
4. Performance and Indicators
4.1 What is the service life of large-flow double spiral centrifugal pumps?
Under normal operation and proper maintenance, KOLEBURG LV400SL has a service life of 8-12 years, 30% longer than industry averages. This is attributed to high-quality pump materials and professional heat treatment processes, which enhance wear and corrosion resistance.
4.2 What are the material and heat treatment options for pump casings?
Material selection directly impacts pump performance in corrosive and abrasive environments. KOLEBURG provides multiple material configurations for LV400SL pump casings, all verified through accelerated aging tests to meet industrial durability requirements:
Material | Heat Treatment | Surface Processing |
|---|---|---|
Cast Iron / Carbon Steel | Annealing | Epoxy Resin Coating (200-300μm) |
Solution Treatment | Passivation | |
Solution Treatment (Water Quenched) | Pickling & Passivation | |
No Heat Treatment | Rubber Lining |
4.3 What are the material and heat treatment options for double spiral impellers?
The double spiral impeller of KOLEBURG LV400SL adopts wear-resistant materials and professional heat treatment processes to ensure long-term stable operation. Key options include:
Material | Heat Treatment | Hardness |
|---|---|---|
ZG/20Cr13 | Quenching + Low-Temperature Tempering | HRC 45-50 |
High-Chromium Cast Iron (Cr26, KmTBCr26) | High-Temperature Quenching + Tempering | HRC 58-62 |
304/304L Stainless Steel | Solution Treatment | HB 180-220 |
Titanium Alloy | Solution Treatment | HB 280-320 |
4.1 What is the service life of KOLEBURG LV400SL?
Under normal operation and proper maintenance, KOLEBURG LV400SL has a service life of 8-12 years, 30% longer than industry averages. This is attributed to high-quality pump materials and professional heat treatment processes, which enhance wear and corrosion resistance.
4.2 What are the material and heat treatment options for pump casings?
Material selection directly impacts pump performance in corrosive and abrasive environments. KOLEBURG provides multiple material configurations for LV400SL pump casings, all verified through accelerated aging tests to meet industrial durability requirements:
Material | Heat Treatment | Surface Processing |
|---|---|---|
Cast Iron / Carbon Steel | Annealing | Epoxy Resin Coating (200-300μm) |
Solution Treatment | Passivation | |
Solution Treatment (Water Quenched) | Pickling & Passivation | |
No Heat Treatment | Rubber Lining |
4.3 What are the material and heat treatment options for double spiral impellers?
The double spiral impeller of KOLEBURG LV400SL adopts wear-resistant materials and professional heat treatment processes to ensure long-term stable operation. Key options include:
Material | Heat Treatment | Hardness |
|---|---|---|
ZG/20Cr13 | Quenching + Low-Temperature Tempering | HRC 45-50 |
High-Chromium Cast Iron (Cr26, KmTBCr26) | High-Temperature Quenching + Tempering | HRC 58-62 |
304/304L Stainless Steel | Solution Treatment | HB 180-220 |
Titanium Alloy | Solution Treatment | HB 280-320 |
4.4 What are the recommended material combinations for different scenarios?
Tailored material combinations optimize pump performance and service life. The following configurations for KOLEBURG LV400SL are validated for specific scenarios, complying with relevant industry material standards:
Application Scenario | Pump Casing | Impeller |
|---|---|---|
Sewage Treatment Plant | Cast Iron + Epoxy Coating | ZG/20Cr13 (Quenched & Tempered) |
Sludge Thickening System | Rubber Lined | High-Chromium Cast Iron Cr26 |
Waste to Energy Plant | Duplex Stainless Steel 2205 | Duplex Stainless Steel 2205 |
Food Processing Industry | 316L Stainless Steel | 316L Stainless Steel |
These combinations balance cost-effectiveness and performance. For example, the rubber-lined casing and high-chromium impeller combination for sludge thickening systems absorbs impact from viscous sludge and provides superior wear resistance, complying with ASTM A240 material standards.
Tailored material combinations optimize pump performance and service life. The following configurations for KOLEBURG LV400SL are validated for specific scenarios, complying with relevant industry material standards:
5. System and Supporting Equipment
5.1 What supporting equipment is required for large-flow centrifugal pumps?
KOLEBURG LV400SL requires minimal supporting equipment for quick deployment, with all components complying with international matching standards to ensure system stability:
Supporting Equipment | Function | Necessity |
|---|---|---|
Motor Control & Overload Protection | Mandatory | |
Flow/Pressure Sensor | Real-Time Operational Monitoring | Mandatory |
Quick Alignment & Maintenance | Optional | |
Suction/Discharge Valve | Flow Regulation & Maintenance Isolation | Mandatory |
5.2 Can double spiral centrifugal pumps integrate with other fluid systems?
Yes, KOLEBURG LV400SL features modular interfaces that seamlessly integrate with sewage filtration systems, water quality monitoring systems, and other common fluid treatment equipment. The integration process complies with ISO 4064 (flow measurement) standards, ensuring compatibility and operational stability with third-party systems. It is widely used in integrated large-scale water treatment projects globally.
5.1 What supporting equipment is required for KOLEBURG LV400SL?
KOLEBURG LV400SL requires minimal supporting equipment for quick deployment, with all components complying with international matching standards to ensure system stability:
Supporting Equipment | Function | Necessity |
|---|---|---|
Motor Control & Overload Protection | Mandatory | |
Flow/Pressure Sensor | Real-Time Operational Monitoring | Mandatory |
Quick Alignment & Maintenance | Optional | |
Suction/Discharge Valve | Flow Regulation & Maintenance Isolation | Mandatory |
5.2 Can KOLEBURG LV400SL integrate with other fluid systems?
Yes, KOLEBURG LV400SL features modular interfaces that seamlessly integrate with sewage filtration systems, water quality monitoring systems, and other common fluid treatment equipment. The integration process complies with ISO 4064 (flow measurement) standards, ensuring compatibility and operational stability with third-party systems. It is widely used in integrated large-scale water treatment projects globally.
6. Installation, Operation and Maintenance
6.1 How to correctly install double spiral centrifugal pumps?
Correct installation is critical for pump performance and safety, requiring compliance with IEC 60364 (electrical installation) and EN 12050 (fluid system installation) standards. Key steps for KOLEBURG LV400SL include:
- Secure the pump on a reinforced concrete base (with vibration isolation pad) to reduce vibration during 740 rpm operation.
- Align the pump with 400 mm discharge pipes using flanges that comply with DIN 2501 standards, ensuring no leakage at connections.
- Check the tightness of mechanical seals and bearing clearance to prevent fluid leakage and friction damage.
- Commission the pump with no-load operation for 30 minutes, then gradually increase load to rated flow to verify operational stability.
6.2 What are the key maintenance tasks and intervals for large-flow centrifugal pumps?
Routine maintenance of KOLEBURG LV400SL complies with ISO 14179 (pump maintenance) standards, effectively extending service life. The following are core maintenance requirements:
Maintenance Task | Interval | Details |
|---|---|---|
Mechanical Seal Inspection | Quarterly | Check for leakage; replace every 2-3 years |
Bearing Lubrication | Semi-Annually | Apply high-temperature resistant grease (NLGI Grade 2) |
Impeller Cleaning & Inspection | Annually | Remove debris; check wear condition, replace if wear exceeds 5mm |
Motor Insulation Test | Semi-Annually | Verify insulation resistance ≥1 MΩ (500V megohmmeter) |
6.3 How to store centrifugal pumps when not in use?
Store KOLEBURG LV400SL in a dry, ventilated environment with a temperature of 5-35°C and relative humidity ≤75%. Before storage, drain internal fluid, clean the pump body and impeller, and apply anti-rust oil to metal surfaces. Disassemble and store mechanical seals separately in oil. This storage method complies with ISO 22000 (equipment storage) standards, preventing corrosion and component damage.
6.1 How to correctly install KOLEBURG LV400SL?
Correct installation is critical for pump performance and safety, requiring compliance with IEC 60364 (electrical installation) and EN 12050 (fluid system installation) standards. Key steps include:
- Secure the pump on a reinforced concrete base (with vibration isolation pad) to reduce vibration during 740 rpm operation.
- Align the pump with 400 mm discharge pipes using flanges that comply with DIN 2501 standards, ensuring no leakage at connections.
- Check the tightness of mechanical seals and bearing clearance to prevent fluid leakage and friction damage.
- Commission the pump with no-load operation for 30 minutes, then gradually increase load to rated flow to verify operational stability.
6.2 What are the key maintenance tasks and intervals?
Routine maintenance of KOLEBURG LV400SL complies with ISO 14179 (pump maintenance) standards, effectively extending service life. The following are core maintenance requirements:
Maintenance Task | Interval | Details |
|---|---|---|
Mechanical Seal Inspection | Quarterly | Check for leakage; replace every 2-3 years |
Bearing Lubrication | Semi-Annually | Apply high-temperature resistant grease (NLGI Grade 2) |
Impeller Cleaning & Inspection | Annually | Remove debris; check wear condition, replace if wear exceeds 5mm |
Motor Insulation Test | Semi-Annually | Verify insulation resistance ≥1 MΩ (500V megohmmeter) |
6.3 How to store KOLEBURG LV400SL when not in use?
Store the pump in a dry, ventilated environment with a temperature of 5-35°C and relative humidity ≤75%. Before storage, drain internal fluid, clean the pump body and impeller, and apply anti-rust oil to metal surfaces. Disassemble and store mechanical seals separately in oil. This storage method complies with ISO 22000 (equipment storage) standards, preventing corrosion and component damage.
7. Cost and Services
7.1 What factors affect the operational cost of large-flow centrifugal pumps?
Operational costs of KOLEBURG LV400SL are mainly influenced by three factors, with total lifecycle cost 20-25% lower than industry averages due to energy-saving and durable design:
Cost Factor | Impact Degree | Optimization Measure |
|---|---|---|
Energy Consumption | High | IE3 motor reduces energy use by 18-25% |
Maintenance Cost | Medium | High-quality materials reduce part replacement frequency |
Downtime Loss | Medium | Anti-clog design minimizes operational interruptions |
7.2 What after-sales services do professional pump manufacturers provide?
KOLEBURG offers comprehensive after-sales support covering the entire product lifecycle to ensure stable project operation:
- 12-month standard warranty (extendable to 36 months with additional service package)
- On-site installation guidance and operator training
- Global OEM parts supply (72-hour delivery in key markets, 5-day delivery in remote areas)
- 24/7 professional technical support via hotline, email, and video conference
- Regular operational inspection and maintenance reminder services
7.1 What factors affect the operational cost of KOLEBURG LV400SL?
Operational costs of KOLEBURG LV400SL are mainly influenced by three factors, with total lifecycle cost 20-25% lower than industry averages due to energy-saving and durable design:
Cost Factor | Impact Degree | Optimization Measure |
|---|---|---|
Energy Consumption | High | IE3 motor reduces energy use by 18-25% |
Maintenance Cost | Medium | High-quality materials reduce part replacement frequency |
Downtime Loss | Medium | Anti-clog design minimizes operational interruptions |
7.2 What after-sales services does KOLEBURG provide?
KOLEBURG offers comprehensive after-sales support covering the entire product lifecycle to ensure stable project operation:
- 12-month standard warranty (extendable to 36 months with additional service package)
- On-site installation guidance and operator training
- Global OEM parts supply (72-hour delivery in key markets, 5-day delivery in remote areas)
- 24/7 professional technical support via hotline, email, and video conference
- Regular operational inspection and maintenance reminder services
8. Industry Standards and Certifications
8.1 What international standards do double spiral centrifugal pumps comply with?
KOLEBURG LV400SL meets multiple international core standards, ensuring performance, safety, and global market access:
Standard Category | Standard Number | Core Requirement |
|---|---|---|
Hydraulic Performance | ISO 13709 | Ensure large-flow efficiency and stability |
Motor Efficiency | IEC 60034-30-1 | Comply with IE3 high-efficiency grade |
Waterproof/Insulation | IEC 60529 / IEC 60085 | Guarantee IP68/Class F protection |
Pressure Equipment | EN 12165 | Ensure pump body structural integrity |
Material Quality | ASTM A240 / EN 10088 | Guarantee corrosion resistance of stainless steel materials |
8.2 What certifications validate the quality of centrifugal pumps?
Key certifications enhance product credibility and EEAT grade, supporting global market expansion for KOLEBURG LV400SL:
- CE Certification (EU Machinery Directive 2006/42/EC)
- ISO 9001 Quality Management System Certification
- NACE MR0175 Certification (Corrosion-Resistant Materials for Oil & Gas)
- UL Certification (Electrical Safety for North American Market)
8.1 What international standards does KOLEBURG LV400SL comply with?
KOLEBURG LV400SL meets multiple international core standards, ensuring performance, safety, and global market access:
Standard Category | Standard Number | Core Requirement |
|---|---|---|
Hydraulic Performance | ISO 13709 | Ensure large-flow efficiency and stability |
Motor Efficiency | IEC 60034-30-1 | Comply with IE3 high-efficiency grade |
Waterproof/Insulation | IEC 60529 / IEC 60085 | Guarantee IP68/Class F protection |
Pressure Equipment | EN 12165 | Ensure pump body structural integrity |
Material Quality | ASTM A240 / EN 10088 | Guarantee corrosion resistance of stainless steel materials |
8.2 What certifications validate the quality of KOLEBURG LV400SL?
Key certifications enhance product credibility and EEAT grade, supporting global market expansion:
- CE Certification (EU Machinery Directive 2006/42/EC)
- ISO 9001 Quality Management System Certification
- NACE MR0175 Certification (Corrosion-Resistant Materials for Oil & Gas)
- UL Certification (Electrical Safety for North American Market)
9. Purchase and Suppliers
9.1 Where can I purchase large-flow double spiral centrifugal pumps?
KOLEBURG LV400SL is available through official channels to ensure product authenticity and after-sales guarantee:
- KOLEBURG Official Website: LV400SL Product Page
- Authorized Global Distributors (list available on official website)
- KOLEBURG Direct Sales Team (contact via official website inquiry form)
Standard models have a delivery cycle of 15-30 working days globally, with expedited delivery options available for urgent projects.
9.2 Do pump manufacturers provide customized solutions for centrifugal pumps?
Yes, KOLEBURG offers customization for LV400SL based on project-specific needs, with all customized solutions verified through ISO 10816 vibration testing:
Customization Item | Available Options | Quotation Cycle |
|---|---|---|
Material Upgrade | Titanium Alloy, Duplex 2205, Special Anti-Corrosion Alloys | 5 Working Days |
Motor Configuration | Power Adjustment, Explosion-Proof Motor | 5 Working Days |
Surface Treatment | Special Anti-Corrosion Coating, Food-Grade Coating | 5 Working Days |
Interface Customization | Flange Standard Adjustment, Special Connection Ports | 5 Working Days |
9.1 Where can I purchase KOLEBURG LV400SL?
KOLEBURG LV400SL is available through official channels to ensure product authenticity and after-sales guarantee:
- KOLEBURG Official Website: LV400SL Product Page
- Authorized Global Distributors (list available on official website)
- KOLEBURG Direct Sales Team (contact via official website inquiry form)
Standard models have a delivery cycle of 15-30 working days globally, with expedited delivery options available for urgent projects.
9.2 Does KOLEBURG provide customized solutions for LV400SL?
Yes, KOLEBURG offers customization for LV400SL based on project-specific needs, with all customized solutions verified through ISO 10816 vibration testing:
Customization Item | Available Options | Quotation Cycle |
|---|---|---|
Material Upgrade | Titanium Alloy, Duplex 2205, Special Anti-Corrosion Alloys | 5 Working Days |
Motor Configuration | Power Adjustment, Explosion-Proof Motor | 5 Working Days |
Surface Treatment | Special Anti-Corrosion Coating, Food-Grade Coating | 5 Working Days |
Interface Customization | Flange Standard Adjustment, Special Connection Ports | 5 Working Days |
10. Safety and Applicability
10.1 What does IP68 waterproof rating mean for centrifugal pumps?
IP68 (IEC 60529) is the highest waterproof rating for electrical equipment, indicating KOLEBURG LV400SL can operate continuously under water (depth ≤1.5m for 24 hours) without electrical hazards. This feature is critical for wet environments like sewage treatment plants, complying with IEC 61558 (electrical equipment safety) standards to ensure operational safety for operators and equipment.
10.2 What media conditions are suitable for double spiral centrifugal pumps?
KOLEBURG LV400SL adapts to various media types, with recommended conditions as follows. For special media, customized material configurations are available:
Media Parameter | Suitable Range | Special Suggestion |
|---|---|---|
pH Value | 4-10 | ＞10/＜4: Use 316L Stainless Steel or Duplex 2205 |
Solid Content | ≤18% | ＞18%: Use Rubber-Lined Pump Body + High-Chromium Impeller |
Temperature | ≤80°C | ＞80°C: Custom High-Temperature Seals & Insulation |
Viscosity | ≤50 mPa·s | ＞50 mPa·s: Custom Impeller Design |
Suitable media include activated sludge, organic wastewater, food waste, and high-viscosity sludge, complying with ASTM A240 (stainless steel) and other material standards. It is not suitable for high-temperature, high-viscosity, or highly corrosive media (e.g., concentrated acid/alkali) without customization.
10.1 What does IP68 waterproof rating mean for centrifugal pumps?
IP68 (IEC 60529) is the highest waterproof rating for electrical equipment, indicating KOLEBURG LV400SL can operate continuously under water (depth ≤1.5m for 24 hours) without electrical hazards. This feature is critical for wet environments like sewage treatment plants, complying with IEC 61558 (electrical equipment safety) standards to ensure operational safety for operators and equipment.
10.2 What media conditions are suitable for KOLEBURG LV400SL?
KOLEBURG LV400SL adapts to various media types, with recommended conditions as follows. For special media, customized material configurations are available:
Media Parameter | Suitable Range | Special Suggestion |
|---|---|---|
pH Value | 4-10 | ＞10/＜4: Use 316L Stainless Steel or Duplex 2205 |
Solid Content | ≤18% | ＞18%: Use Rubber-Lined Pump Body + High-Chromium Impeller |
Temperature | ≤80°C | ＞80°C: Custom High-Temperature Seals & Insulation |
Viscosity | ≤50 mPa·s | ＞50 mPa·s: Custom Impeller Design |
Suitable media include activated sludge, organic wastewater, food waste, and high-viscosity sludge, complying with ASTM A240 (stainless steel) and other material standards. It is not suitable for high-temperature, high-viscosity, or highly corrosive media (e.g., concentrated acid/alkali) without customization.
Table of Contents
