KOLEBURG TA500L Sewage Submersible Pump Series Product Model
No Clogging Centrifugal Pump
The KOLEBURG TA500L Sewage Submersible Pump Series is a mega-flow, low-to-medium head wastewater handling solution equipped with a premium L Single Helix Pump Impeller. Engineered for fully submerged operation, it excels at transferring massive-volume sewage (1225-3672 m³/h) containing solid particles and fibrous substances, with a head range of 3-28.5 m. Fitted with an IE3 high-efficiency motor and IP68 waterproof rating, this pump complies with global energy efficiency and safety standards, making it ideal for super-large-scale municipal and industrial harsh environments.
Specification
| Parameter | Specification |
|---|---|
| Model | TA500L Sewage Submersible Pump Series |
| Type | Single Helix Impeller Sewage Submersible Pump |
| Flow Rate | 1225-3672 m³/h |
| Head | 3-28.5 m |
| Outlet Diameter | 500 mm |
| Motor Power | 25-315 KW (6/8/10/12/14-pole) |
| Rotation Speed | 365-990 rpm |
| Protection/Insulation/Efficiency | IP68 / Class F / IE3 |
- ISO、CE、EAC
- L/C Accepted
- 7*24H Response
- Accept customization
KOLEBURG TA500L Series Product Information
Model & Information
Model parameter table, performance curves, drawings
| KOLEBURG TA500L Series Product Model | |||||||
| NO | Model | Flow (m3/h) | Lift (m) | Power(KW) | Speed（ rpm） | Inlet (DN) | Motor Type |
| 1 | TA500L-Q1225H3N25G365 | 1225 | 3 | 25 | 365 | 500 | Fourteenth-stage motor |
| 2 | TA500L-Q1440H3-2N25G365 | 1440 | 3.2 | 25 | 365 | 500 | Fourteenth-stage motor |
| 3 | TA500L-Q1620H7N45F490 | 1620 | 7 | 45 | 490 | 500 | Twelve-stage motor |
| 4 | TA500L-Q1836H5N45F490 | 1836 | 5 | 45 | 490 | 500 | Twelve-stage motor |
| 5 | TA500L-Q2088H9N75E585 | 2088 | 9 | 75 | 585 | 500 | Ten-stage motor |
| 6 | TA500L-Q2160H6N55E585 | 2160 | 6 | 55 | 585 | 500 | Ten-stage motor |
| 7 | TA500L-Q2160H7-5N63E585 | 2160 | 7.5 | 63 | 585 | 500 | Ten-stage motor |
| 8 | TA500L-Q2664H17N220C990 | 2664 | 17 | 220 | 990 | 500 | Six-stage motor |
| 9 | TA500L-Q2700H14N155D740 | 2700 | 14 | 155 | 740 | 500 | Eight-stage motor |
| 10 | TA500L-Q2772H11-6N132D740 | 2772 | 11.6 | 132 | 740 | 500 | Eight-stage motor |
| 11 | TA500L-Q2880H8N110D740 | 2880 | 8 | 110 | 740 | 500 | Eight-stage motor |
| 12 | TA500L-Q3528H28-5N315C990 | 3528 | 28.5 | 315 | 990 | 500 | Six-stage motor |
| 13 | TA500L-Q3672H20-5N280C990 | 3672 | 20.5 | 280 | 990 | 500 | Six-stage motor |
Tailored to your exact needs, our centrifugal pumps are engineered with application-specific parameters to deliver optimized efficiency, durability, and operational reliability.
Materials & Surface Treatments
Pump body & impeller
KOLEBURG TA500L centrifugal pump Series Product pump body and pump impeller main materials and heat treatment process
Pump Casing Material & Treatment
| Material Type | Key Suitability | Heat Treatment & Surface Processing |
|---|---|---|
| cast iron | General municipal sewage (cost-efficient) | Annealing; 200-300μm epoxy coating (ISO 12944) |
| 304/304L Material | Food-related wastewater (hygienic) | Solution annealing; passivation (ASTM A240) |
| 316/316L Material | High-chloride industrial wastewater | Solution treatment; pickling & passivation (NACE MR0175) |
| Rubber lined | High-abrasion sludge media | No heat treatment (rubber impact absorption) |
Impeller Materials and Handling
| Material Type | Key Suitability | Heat Treatment & Surface Processing |
|---|---|---|
| ZG/20Cr13 | Wear-prone sewage/sludge | Quenching + low-temp tempering (HRC 45-50); tungsten carbide hardfacing |
| 316/316L Material | Corrosive industrial media | Solution treatment; passivation |
| Duplex 2205 | High-strength corrosive scenarios | Solution quenching (ASTM A995) |
| Titanium Alloy | Strongly corrosive special media | Solution annealing; surface polishing (ASTM B348) |
Centrifugal pump
Application industry
KOLEBURG TA500L centrifugal pump Series Product, industry applications and advantages

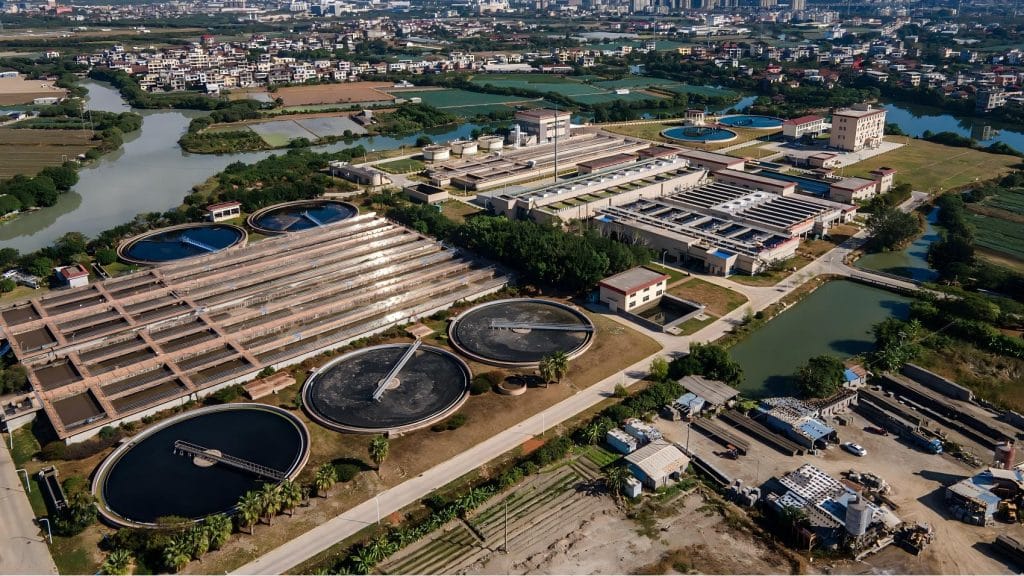

Municipal & Industrial Wastewater
Ideal for super-large-scale raw sewage lifting and treated effluent discharge, matching the throughput of mega municipal treatment facilities.
Efficiently conveys high-viscosity sludge (≤20% solid content) with stable pressure, adapting to low-to-medium head requirements.
Waste to Energy Plant
Resists corrosion and abrasion from waste leachate, ensuring continuous operation in harsh waste treatment environments.
Recommended Material Combinations
According to the usage scenario, the final solution is to match the materials of the pump body and impeller.
| Application Scenario | Pump Body Material | Impeller Material | Combination Rationale |
|---|---|---|---|
| Standard Municipal Sewage | Cast iron (epoxy coated) | ZG/20Cr13 (quenched) | Cost-effective corrosion/wear balance |
| Industrial High-Chloride Wastewater | 316/316L Material | 316/316L Material | Full chloride corrosion resistance (NACE MR0175) |
| Sludge Thickening System | Rubber lined | Duplex 2205 | Rubber impact absorption + duplex steel abrasion resistance |
| Waste to Energy Plant | 304/304L Material | ZG/20Cr13 (hardfaced) | Hygienic corrosion protection + wear resistance for leachate |
Key Product Advantages
Related products
Related products
- Sale!
TA submersible pumpKOLEBURG TA400SL Submersible Pump Series Product
- Sale!TA submersible pump
KOLEBURG TA300SL Submersible Pump Series Product
- Sale!TA submersible pump

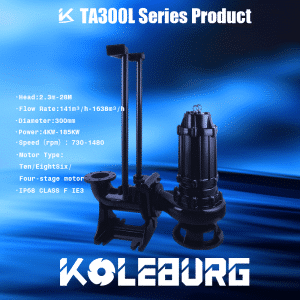

KOLEBURG TA300L Submersible Pump Series Product
