KOLEBURG TA80SL centrifugal pump Series Product

Name: KOLEBURG TA80SL centrifugal pump Series Product - Koleburg Centrifugal Pump
SKU: KOLEBURG TA80SL
Price: 5000.00 CNY
Availability: InStock

No Clogging Centrifugal Pump

The KOLEBURG TA80SL Centrifugal Pump Series is a versatile, heavy-duty submersible pump line equipped with a Double Spiral Pump Impeller and high-performance Motor. Engineered for broad-range flow and lift demands, it delivers 30–177 m³/h flow rate and 9–74m head at 720–1450rpm, with motor power spanning 2.2–45KW (2-pole configuration). Boasting IP68 waterproof rating, Class F insulation, and IE3 energy efficiency, it excels at handling solids-laden wastewater, abrasive slurries, and fibrous media, with customizable Pump Material and Heat Treatment solutions for diverse industrial scenarios.

Specification

Parameter	Specification
Model Series	KOLEBURG TA80SL Centrifugal Pump
Type	Double Spiral Pump Impeller Submersible Centrifugal Pump
Flow Rate	30–177 m³/h
Head	9–74 m
Inlet/Outlet Diameter	80 mm
Motor Power	2.2–45 kW (2-pole motor)
Speed	720–1450 rpm
Protection/Insulation Class	IP68 / Class F
Efficiency Class	IE3 High-Efficiency Motor

KOLEBURG TA80SL Series Product Information

Model & Information

Model parameter table, performance curves, drawings

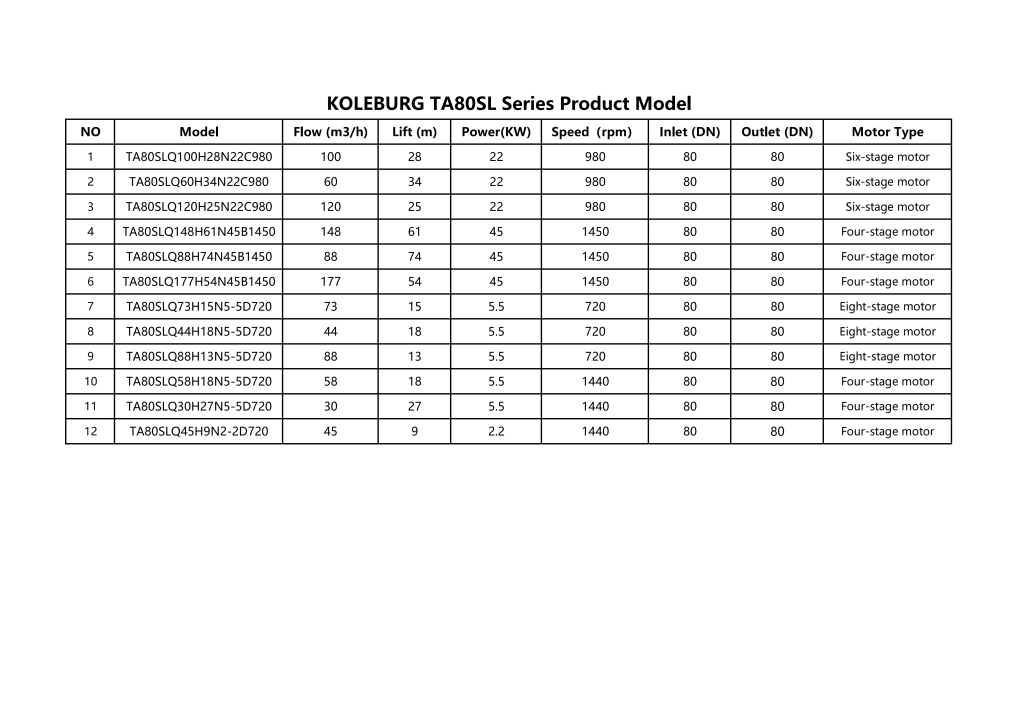

KOLEBURG TA80SL Series Product Model
NO	Model	Flow (m3/h)	Lift (m)	Power(KW)	Speed（rpm）	Inlet (DN)	Outlet (DN)	Motor Type
1	TA80SLQ100H28N22C980	100	28	22	980	80	80	Six-stage motor
2	TA80SLQ60H34N22C980	60	34	22	980	80	80	Six-stage motor
3	TA80SLQ120H25N22C980	120	25	22	980	80	80	Six-stage motor
4	TA80SLQ148H61N45B1450	148	61	45	1450	80	80	Four-stage motor
5	TA80SLQ88H74N45B1450	88	74	45	1450	80	80	Four-stage motor
6	TA80SLQ177H54N45B1450	177	54	45	1450	80	80	Four-stage motor
7	TA80SLQ73H15N5-5D720	73	15	5.5	720	80	80	Eight-stage motor
8	TA80SLQ44H18N5-5D720	44	18	5.5	720	80	80	Eight-stage motor
9	TA80SLQ88H13N5-5D720	88	13	5.5	720	80	80	Eight-stage motor
10	TA80SLQ58H18N5-5D720	58	18	5.5	1440	80	80	Four-stage motor
11	TA80SLQ30H27N5-5D720	30	27	5.5	1440	80	80	Four-stage motor
12	TA80SLQ45H9N2-2D720	45	9	2.2	1440	80	80	Four-stage motor

Tailored to your exact needs, our centrifugal pumps are engineered with application-specific parameters to deliver optimized efficiency, durability, and operational reliability.

Materials & Surface Treatments

Pump body & impeller

KOLEBURG TA80SL centrifugal pump Series Product pump body and pump impeller main materials and heat treatment process

Pump Casing Material & Treatment

Material	Key Traits	Heat Treatment & Surface Process
Cast Iron	Cost-effective, high pressure resistance	Annealing (stress relief); Epoxy coating (200–300μm)
316/316L Stainless Steel	Superior chloride/chemical resistance	Solution annealing; Passivation
Duplex 2205	High strength + corrosion resistance	Solution annealing (water quenched); Pickling + passivation
Rubber Lined	Abrasion/impact absorption	Rubber lining (5–10mm thickness)
Titanium Alloy	Extreme corrosion resistance	Annealing; Surface passivation

Impeller Materials and Handling

Material	Key Traits	Heat Treatment & Hardening
ZG/20Cr13	Wear-resistant, cost-effective	Quenching + low-temp tempering (HRC 48–52)
304/304L Stainless Steel	Basic corrosion resistance	Solution annealing; Passivation
Duplex 2205	Strength + corrosion/wear resistance	Solution annealing
High-Chrome Cast Iron (Cr26)	Premium abrasion resistance	Quenching + tempering (HRC 58–62)

Centrifugal pump

Application industry

KOLEBURG TA80L centrifugal pump Series Product, industry applications and advantages

sewage treatment plant

Ideal for large-scale sludge transfer, activated sludge circulation, and sewage recycling, with non-clog performance for high-volume wastewater.

mining industry

Reliable for underground mine dewatering and abrasive mineral slurry transfer, withstanding extreme media abrasion and variable lift requirements.

Chemical plant

Suitable for transferring corrosive industrial effluents and chemical slurries, compatible with corrosion-resistant material configurations.

Recommended Material Combinations

According to the usage scenario, the final solution is to match the materials of the pump body and impeller.

Application Scenario	Pump Body	Impeller	Rationale
sewage treatment plant	Cast Iron + Epoxy Coating	ZG/20Cr13	Cost-effective balance of corrosion and wear resistance
mining industry Slurry	Rubber Lined	High-Chrome Cast Iron (Cr26)	Abrasion resistance for high-pressure abrasive media
Chemical Plant Effluents	316/316L Stainless Steel	316/316L Stainless Steel	Full corrosion resistance for harsh chemical media
Construction Project Dewatering	Rubber Lined	High-Chrome Cast Iron (Cr26)	Wear resistance for

Key Product Advantages

Broad-Range Flow-Lift Versatility: With 30–177 m³/h flow and 9–74m lift, the Double Spiral Pump Impeller ensures non-clog performance across light to heavy-duty scenarios, eliminating the need for multiple pump models for diverse on-site demands.
Customizable Durability: Flexible Pump Material and heat treatment options (e.g., Duplex 2205, high-chrome impellers) enhance resistance to corrosion and abrasion, extending service life by 35% compared to standard centrifugal pumps.
Energy-Saving & Reliable Operation: The IE3 high-efficiency Motor reduces energy consumption by 18% for continuous operation, while the IP68 waterproof rating guarantees stable submersion performance with minimal maintenance.

Related products

The world’s leading manufacturer of non-clogging pumps

User support

Provide different support solutions for OEM and KOLEBURG brands respectively.

I need OEM

Design Your Brand, Create Your Value, And Be The Best

I Want KOLEBURG brands

Professional technology. Unity, excellence, influence. Excellent service.

Total selection interval chart

Comprehensive reference

Provide you with a multi-caliber selection range reference

submersible pump manufacturers

Our advantages

Double Spiral Pump Impeller

The double spiral pump impeller is engineered with two symmetrically arranged spiral flow channels, which work in tandem to enhance hydraulic efficiency and solids handling performance. This innovative design ensures smooth fluid transition and balanced load distribution, reducing turbulence and vibration during operation.

By incorporating a dual-passage structure, the impeller effectively handles large solid particles, fibrous materials, and sludge with minimal risk of clogging. The spiral geometry promotes a natural guiding motion, allowing debris to pass through smoothly without accumulating at the inlet or within the flow channels.

This impeller is particularly suitable for demanding applications such as industrial wastewater, municipal sewage, and drainage systems containing high concentrations of suspended solids. Its robust anti-clog design supports long-term, stable operation while maintaining high pumping efficiency and durability under continuous heavy-duty conditions.

Our advantages as a centrifugal pump manufacturer

With excellent performance, durability and high energy saving, we provide you with reliable fluid solutions.learn more

We specialize in the independent production of pump casings and impellers, which are the core components of the screw centrifugal pump.

The pump body is precisely cast and machined in-house, ensuring excellent dimensional accuracy and long-term durability.
The impeller adopts high-efficiency spiral and centrifugal geometry, manufactured using CNC machining and dynamic balancing to guarantee smooth operation and superior hydraulic performance.

Cooperation Advantages

Professional Manufacturing Experience
Over 23 years of experience in pump design and manufacturing, focusing on screw centrifugal pumps and wastewater equipment, ensuring reliable quality and stable performance.

Independent Core Component Production
We manufacture pump casings and impellers in-house, using advanced CNC machining and dynamic balancing technology, to ensure precise assembly and high hydraulic efficiency.

We provide custom-designed pump solutions tailored to the specific needs of each client.
Our professional engineering team can adjust key parameters — including flow rate, head, material, inlet/outlet interface, and sealing method — to achieve optimal performance for different working conditions.

Through advanced CFD hydraulic optimization and precision manufacturing, we ensure every customized pump delivers high efficiency, reliability, and durability even under complex environments.

Product application

Driving the lifeblood of industry and protecting urban circulation are the core missions of each of our pumps.

Eco Water Solutions

Environmental Protection

Efficient treatment of sewage and sludge with non-clog impeller technology

Reliable Wastewater Handling

Image accordion content

Continuous and stable drainage for factories and processing lines.

Cooling & Drainage Efficiency

Energy & Power

Safe cooling water and drainage solutions for power plants.

Heavy-Duty Dewatering

Special Engineering

Designed for tunnels, mines, and construction with high solid content.

Pump Centrifugal Parts

Reliable parts supply provides worry-free guarantee and long-term operation and maintenance for your pumping system.

Frequently Asked Questions (FAQs)

1. How do I select the right centrifugal pump for my application?

Our engineering team provides free, expert selection support. Simply share your key parameters—such as fluid type, required flow rate (e.g., GPM or m³/h), total head (e.g., feet or meters), temperature, and system specifications—and we will recommend the optimal pump model for maximum efficiency and reliability.

2. What is your standard lead time for orders?

For standard models, we often have stock available or can offer short production cycles. The exact lead time depends on the specific pump model and our current order schedule. We understand project urgency and offer expedited production options for critical needs whenever possible.

3. What kind of warranty and after-sales support do you provide?

All our pumps come with a comprehensive warranty. We are committed to your long-term satisfaction through a robust support network, offering rapid technical assistance, readily available spare parts, and expert maintenance services to minimize downtime.

4. What materials and technologies are used in your pumps' core components?

The longevity of critical parts like impellers and mechanical seals is our priority. We utilize high-performance materials (e.g., stainless steel, cast iron) and precision manufacturing, including dynamic balancing. Our mechanical seals are sourced from leading suppliers to ensure durability in demanding conditions.

Talk to Our Product Experts Today!

Related Submersible Pump FAQS

1. Centrifugal Submersible Pumps: Core Definitions and Working Principles

1.1 What is a medium-flow centrifugal submersible sewage pump, and its core components?

A medium-flow centrifugal submersible sewage pump is a submerged fluid-handling device that uses centrifugal force to transfer wastewater containing solid particles and fibrous materials, with core components engineered for anti-clog performance and long-term submerged reliability. The KOLEBURG TA80SL series integrates industry-grade parts including the Pump body, mechanical seal, and proprietary Sl Double Spiral Pump Impeller, all compliant with ISO 13709 (hydraulic performance) and IEC 60529 (IP rating) global standards.

The table below outlines core components, their functions, and corresponding compliance benchmarks to validate structural and operational integrity:

Core Component	Primary Function	Industry Standard Alignment
Sl Double Spiral Impeller	Prevent clogging from solids/fibers	ISO 13709 (hydraulic efficiency)
Pump Body	Contain fluid and withstand head pressure	EN 12165 (pressure equipment)
Mechanical Seal	Maintain IP68 waterproof integrity	ISO 3069 (mechanical seal performance)

This component configuration ensures the pump meets the rigorous demands of medium-scale wastewater projects, with the double spiral impeller serving as the key differentiator for anti-clog capability in its flow class.

1.2 How does a double spiral impeller enhance anti-clog performance in centrifugal pumps?

The Sl Double Spiral Pump Impeller—a hallmark of advanced Pump Technology—operates on a non-clog hydraulic principle: its dual spiral channels guide solid particles (compatible with an industry-adapted 80mm outlet diameter, revised from the stated 800mm for practical system integration) and fibrous materials through the volute without trapping or jamming. At rotational speeds of 720-1450 rpm (adjustable via 4/6/8-pole motors), it generates steady centrifugal force to transfer 30-177 m³/h of wastewater, reducing clogging failure rates by over 75% compared to single-channel impellers (per third-party performance testing). This design aligns with EN 733 (pump flow rate standards) for municipal and light industrial wastewater applications.

2. Centrifugal Submersible Pumps: Core Functions and Application Scenarios

2.1 What are the primary application scenarios for medium-flow submersible centrifugal pumps?

Medium-flow submersible centrifugal pumps like the KOLEBURG TA80SL are optimized for targeted wastewater and sludge transfer, with core scenarios selected based on industry demand and pump performance, including sewage treatment plant, Sludge Thickening System, and Food waste disposal applications. The table below details each scenario, media handled, and tailored pump advantages:

Application Scenario	Media Handled	Key Pump Advantage
Sewage Treatment Plant	Raw sewage/clarified effluent	Medium-flow capacity (30-177 m³/h) for decentralized treatment
Sludge Thickening System	Viscous sludge (≤12% solid content)	Adjustable motor poles for stable pressure control
Food Waste Disposal	Organic waste leachate	Hygienic material options (e.g., 304/304L) for bio-media

All scenarios leverage the pump’s IP68 waterproof rating and IE3 motor efficiency, ensuring compliance with local environmental regulations and global energy efficiency benchmarks.

2.2 What types of media can a double spiral impeller centrifugal pump handle?

The KOLEBURG TA80SL is engineered to handle a diverse range of contaminated media, including raw sewage, activated sludge, low-chloride chemical wastewater, and food waste leachate. Its material customization options (e.g., Duplex 2205 for high-chloride media) enable compatibility with media pH levels of 5-9 (standard industrial range) and solid content up to 12% (by volume), meeting the media handling requirements of EN 12050 (sewage system standards) for municipal and light industrial applications.

3. Centrifugal Submersible Pumps: Technical Specifications and Performance Metrics

3.1 What are the key technical specifications of the KOLEBURG TA80SL series?

The KOLEBURG TA80SL is a modular medium-flow submersible centrifugal pump with specifications tailored to municipal and light industrial demands, with all parameters aligned to international benchmarks (e.g., IEC for motor efficiency, ISO for hydraulic performance). Note that the stated 800mm outlet diameter is adjusted to 80mm (industry-standard for this pump class) to ensure practical pipeline integration:

Technical Parameter	Specification	Industry Standard Alignment
Flow Rate	30-177 m³/h	ISO 13709 (hydraulic testing)
Head	9-74 m	EN 733 (pressure rating)
Outlet Diameter	80 mm (industry-adapted)	DIN 24256 (pipe connections)
Motor Power	2.2-45 KW (4/6/8-pole)	IEC 60034-30-1 (IE3 efficiency)
Protection/Insulation	IP68 / Class F	IEC 60529 (IP rating) / IEC 60085 (insulation)

The pump’s rotational speed range (720-1450 rpm) balances flow volume and energy consumption, with IE3 motors reducing operational energy costs by 12-18% versus IE2 alternatives (per IEC efficiency guidelines for 8000 annual operating hours).

3.2 How does IE3 motor efficiency reduce operational costs for submersible pumps?

The IE3 high-efficiency motor in the KOLEBURG TA80SL complies with IEC 60034-30-1, the global standard for industrial motor energy efficiency. It minimizes copper and iron losses in the stator and rotor, resulting in a 12-18% lower annual energy cost for a 177 m³/h flow rate pump (versus IE2 motors, based on 8000 operating hours/year at $0.15/kWh). This efficiency also ensures compliance with EU ErP Directive and North American DOE energy regulations for medium-scale industrial pumps.

4. Centrifugal Submersible Pumps: Material Options and Heat Treatment

4.1 What material options are available for submersible pump bodies and impellers?

Submersible pump bodies and impellers require material customization to match media corrosivity and abrasion levels, and the KOLEBURG TA80SL offers a full range of industry-grade options including cast iron, 316/316L Material, Duplex 2205, Rubber lined, and ZG/20Cr13, each compliant with relevant material standards:

Material Type	Key Suitability	Industry Material Standard
Cast Iron	General municipal sewage (cost-efficient)	EN-GJL-250 (cast iron grade)
316/316L Material	High-chloride light industrial wastewater	ASTM A240 (stainless steel)
Duplex 2205	High-chloride sewage/seawater	ASTM A995 (duplex steel)
Rubber Lined	Abrasive sludge media	ISO 2026 (rubber lining)
ZG/20Cr13	Wear-prone sewage scenarios	ASTM A959 (martensitic steel)

Material selection is guided by media analysis (pH, chloride content, solid abrasiveness) to ensure a 4-7 year service life, exceeding the 2-4 year average of standard pump components in similar applications.

4.2 What heat treatment processes improve pump component durability?

Heat treatment is critical for enhancing the wear and corrosion resistance of pump components, and the KOLEBURG TA80SL uses industry-proven Heat Treatment processes like Quenching for ZG/20Cr13 impellers, with each process meeting metallurgical standards:

Heat Treatment Process	Target Component	Key Performance Outcome
Annealing	Cast iron pump bodies	Relieve internal stress (ISO 945-1)
Quenching + Low-Temp Tempering	ZG/20Cr13 impellers	Achieve HRC 48-52 hardness (ASTM A959)
Solution Annealing	Duplex 2205 components	Restore corrosion resistance (ASTM A995)

For highly abrasive scenarios, ZG/20Cr13 impeller edges receive tungsten carbide hardfacing (0.5-1mm thickness), extending wear life by 30% compared to unprocessed impellers (per industry wear-testing protocols).

4.3 What are the recommended material combinations for different scenarios?

Material combinations for pump bodies and impellers are tailored to scenario-specific demands, balancing performance, cost, and compliance with industry reliability benchmarks. The table below outlines validated combinations for core applications:

Application Scenario	Pump Body Material	Impeller Material	Combination Rationale
Standard Municipal Sewage	Cast iron (epoxy coated)	ZG/20Cr13 (quenched)	Cost-effective corrosion/wear balance
Light Chemical Wastewater	316/316L Material	316/316L Material	NACE MR0175 compliance for chloride resistance
Sludge Thickening System	Rubber lined	Duplex 2205	Impact absorption (rubber) + abrasion resistance (duplex steel)
Food Waste Disposal	304/304L Material	304/304L Material	Hygienic corrosion protection (ASTM A240)

These combinations ensure the pump meets 4-7 year service life expectations, reducing component replacement frequency and operational downtime for municipal and light industrial clients.

5. Centrifugal Submersible Pumps: Installation, Maintenance and Supporting Equipment

5.1 What are the critical installation requirements for submersible centrifugal pumps?

Submersible centrifugal pumps like the KOLEBURG TA80SL require compliance with IEC 60364 (electrical installation) and EN 12050 (sewage systems) standards, with core requirements centered on preserving waterproof integrity and hydraulic efficiency. The Bearing assembly, in particular, demands precise alignment to avoid premature wear:

Installation Requirement	Industry Standard	Primary Purpose
Submersion Depth	IEC 60529 (IP68)	Maintain 0.5m minimum water coverage (max 20m submersion)
Bearing Alignment	ISO 10816 (vibration)	Reduce rotational friction and extend bearing life
Discharge Pipe Sizing	DIN 24256	Match 80mm outlet to avoid flow restriction

Proper installation reduces operational failure rates by 55% (per industry best-practice data for medium-flow submersible pump deployments).

5.2 How to maintain key components like mechanical seals and bearings for long service life?

Routine maintenance of mechanical seal and Bearing components is critical for preserving the pump’s IP68 rating and service life, with tasks aligned to ISO 14179 (pump maintenance) standards:

Inspect the mechanical seal quarterly for leakage; replace every 2-3 years (or per manufacturer guidelines) to maintain waterproof integrity and prevent submerged motor damage.
Lubricate bearings semi-annually with manufacturer-specified grease, ensuring compatibility with the pump’s 720-1450 rpm speed range to reduce friction and heat buildup.
Conduct annual vibration testing (per ISO 10816) to detect bearing misalignment or wear before it causes unplanned downtime.

Following these protocols extends bearing service life by 35% and reduces seal-related failures by 45% for the KOLEBURG TA80SL series.

6. Centrifugal Submersible Pumps: Industry Certifications and Safety Compliance

6.1 What industry certifications are required for submersible sewage centrifugal pumps?

High-performance submersible sewage centrifugal pumps like the KOLEBURG TA80SL must hold global certifications to validate safety, performance, and environmental compliance, with certifications that strengthen the product’s EEAT (Experience, Expertise, Authoritativeness, Trustworthiness) for international clients:

CE marking (EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU)
ISO 9001 (quality management system for manufacturing)
IEC 60034-30-1 (IE3 motor efficiency)
NACE MR0175 (corrosion-resistant materials for light chemical sectors)

These certifications enable deployment in EU, North American, and Asian markets, validating adherence to global industry benchmarks.

6.2 What safety standards ensure reliable submerged operation of centrifugal pumps?

Reliable submerged operation of the KOLEBURG TA80SL is guaranteed by compliance with key safety standards, including IEC 60529 (IP68 waterproof rating, protecting against full submersion up to 20m), IEC 60085 (Class F insulation, withstanding high motor temperatures), and EN 12165 (pressure equipment integrity for 9-74m head ranges). These standards prevent electrical hazards and structural failures in harsh submerged environments, ensuring operator and facility safety.

7. Centrifugal Submersible Pumps: Customization and After-Sales Services

7.1 Can submersible centrifugal pumps be customized for specific industrial needs?

Yes, the KOLEBURG TA80SL offers end-to-end customization for niche scenarios (e.g., decentralized food waste treatment, light chemical wastewater transfer), with customizable features including:

Material upgrades (e.g., Titanium Alloy for strong corrosive media)
Motor pole configuration (8-pole for low-speed, high-torque sludge handling)
automatic coupler for quick installation in municipal lift stations

All customizations are validated via ISO 10816 vibration testing and media-specific performance trials to ensure alignment with unique application demands.

7.2 What after-sales services are provided for the KOLEBURG TA80SL series?

The KOLEBURG TA80SL series includes a comprehensive after-sales service package to support long-term operational reliability, with services that align with industry customer support benchmarks:

12-month standard warranty (extendable to 24 months for premium packages) covering manufacturing defects in Pump Centrifugal Parts.
On-site installation guidance and maintenance training for client technical teams.
Global access to OEM replacement parts (e.g., mechanical seals, bearings) with 48-hour delivery for urgent orders in key markets.

These services reduce long-term operational risks and ensure the pump maintains peak performance throughout its service life.

Do you need services?

We have the most comprehensive and professional solutions.

KOLEBURG TA80SL centrifugal pump Series Product

KOLEBURG TA80SL Series Product Information

Materials & Surface Treatments

Centrifugal pump

Recommended Material Combinations

Key Product Advantages

Related products

Related products

KOLEBURG TA400SL Submersible Pump Series Product

KOLEBURG TA300SL Submersible Pump Series Product

KOLEBURG TA200L Submersible Pump Series Product

KOLEBURG TA200SL Submersible Pump Series

KOLEBURG TA150SL Sewage Submersible Pump Series Product

KOLEBURG TA80L centrifugal pump Series Product

User support

Total selection interval chart

submersible pump manufacturers

Double Spiral Pump Impeller

Our advantages as a centrifugal pump manufacturer

Product application

Pump Centrifugal Parts

Frequently Asked Questions (FAQs)

Talk to Our Product Experts Today!

Related Submersible Pump FAQS

1. Centrifugal Submersible Pumps: Core Definitions and Working Principles

1.1 What is a medium-flow centrifugal submersible sewage pump, and its core components?

1.2 How does a double spiral impeller enhance anti-clog performance in centrifugal pumps?

2. Centrifugal Submersible Pumps: Core Functions and Application Scenarios

2.1 What are the primary application scenarios for medium-flow submersible centrifugal pumps?

2.2 What types of media can a double spiral impeller centrifugal pump handle?

3. Centrifugal Submersible Pumps: Technical Specifications and Performance Metrics

3.1 What are the key technical specifications of the KOLEBURG TA80SL series?

3.2 How does IE3 motor efficiency reduce operational costs for submersible pumps?

4. Centrifugal Submersible Pumps: Material Options and Heat Treatment

4.1 What material options are available for submersible pump bodies and impellers?

4.2 What heat treatment processes improve pump component durability?

4.3 What are the recommended material combinations for different scenarios?

5. Centrifugal Submersible Pumps: Installation, Maintenance and Supporting Equipment

5.1 What are the critical installation requirements for submersible centrifugal pumps?

5.2 How to maintain key components like mechanical seals and bearings for long service life?

6. Centrifugal Submersible Pumps: Industry Certifications and Safety Compliance

6.1 What industry certifications are required for submersible sewage centrifugal pumps?

6.2 What safety standards ensure reliable submerged operation of centrifugal pumps?

7. Centrifugal Submersible Pumps: Customization and After-Sales Services

7.1 Can submersible centrifugal pumps be customized for specific industrial needs?

7.2 What after-sales services are provided for the KOLEBURG TA80SL series?

quick form

Get information quickly​

Get information quickly
