Brewery

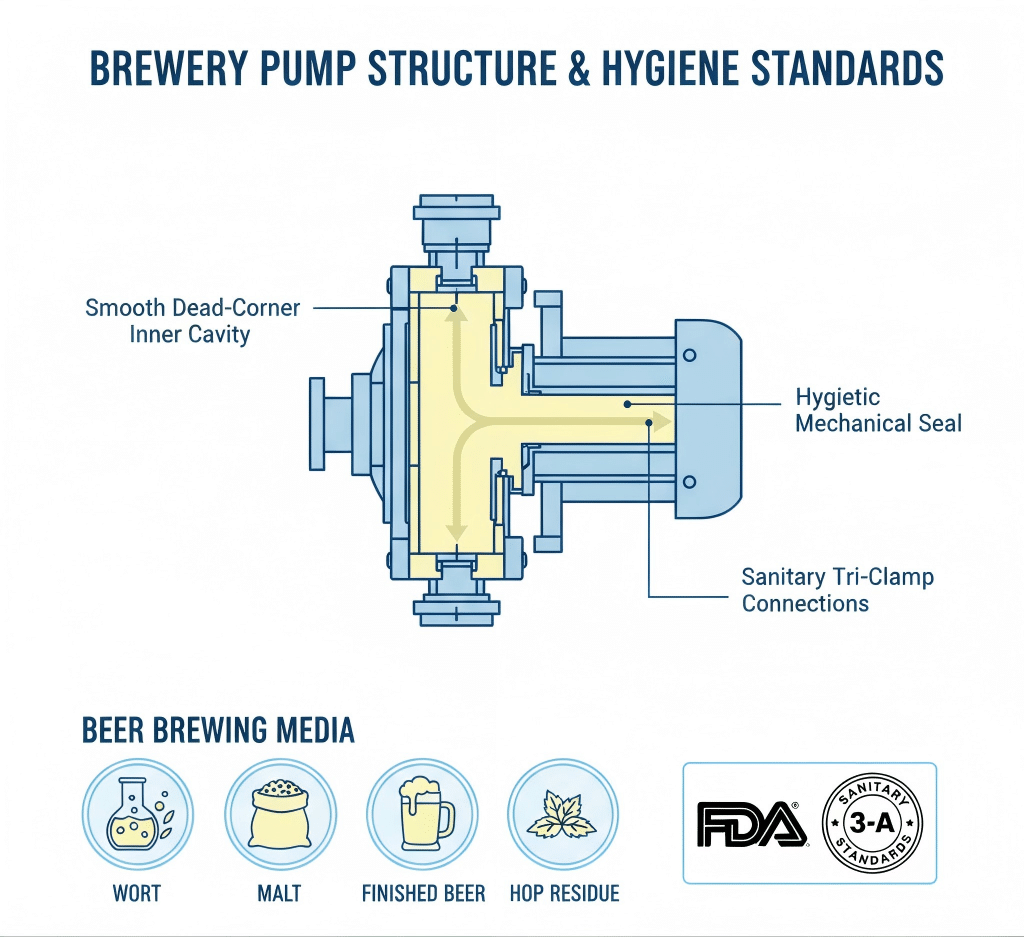

What is a Brewery Pump?

• Strict compliance with international hygiene standards (FDA 21 CFR Part 177, 3-A Sanitary Standards), ensuring all parts in contact with beer are non-toxic, odorless, and non-reactive
• Low shear force design to prevent the destruction of beer colloidal stability and flavor substances (such as hop aroma components)
• Excellent anti-clogging performance to adapt to malt-containing wort, hop residues, and other media with solid particles
• Corrosion resistance to cope with acidic wort (pH 4.0-5.5) and alkaline CIP cleaning solutions (pH 11-13)
• Easy disassembly and cleaning, matching the brewery’s CIP (Clean-in-Place) cleaning system to improve production efficiency
• Stable operation under variable temperature conditions (0-100℃), adapting to low-temperature storage of finished beer and high-temperature wort processing

How to Achieve Precise Matching of Brewery Pumps with Operating Conditions?

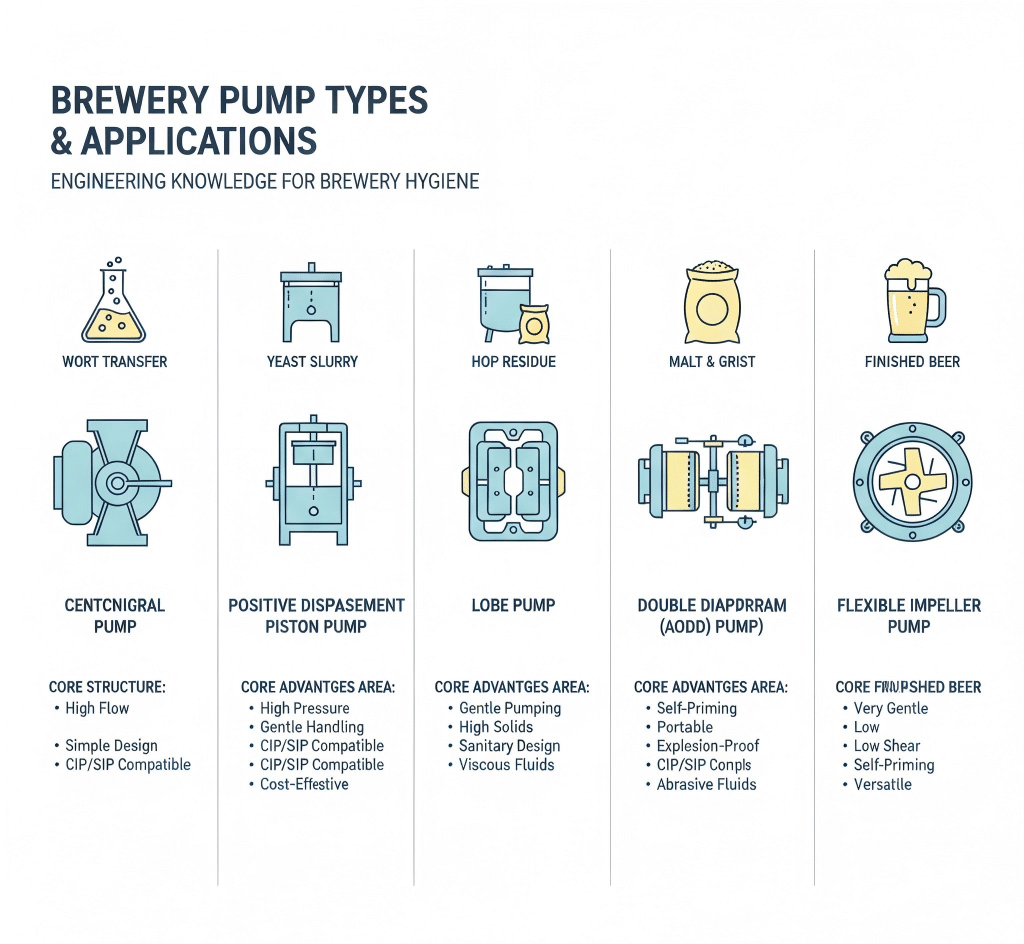

Common Pump Types in Breweries and Their Advantages

Performance Comparison of Common Brewery Pumps

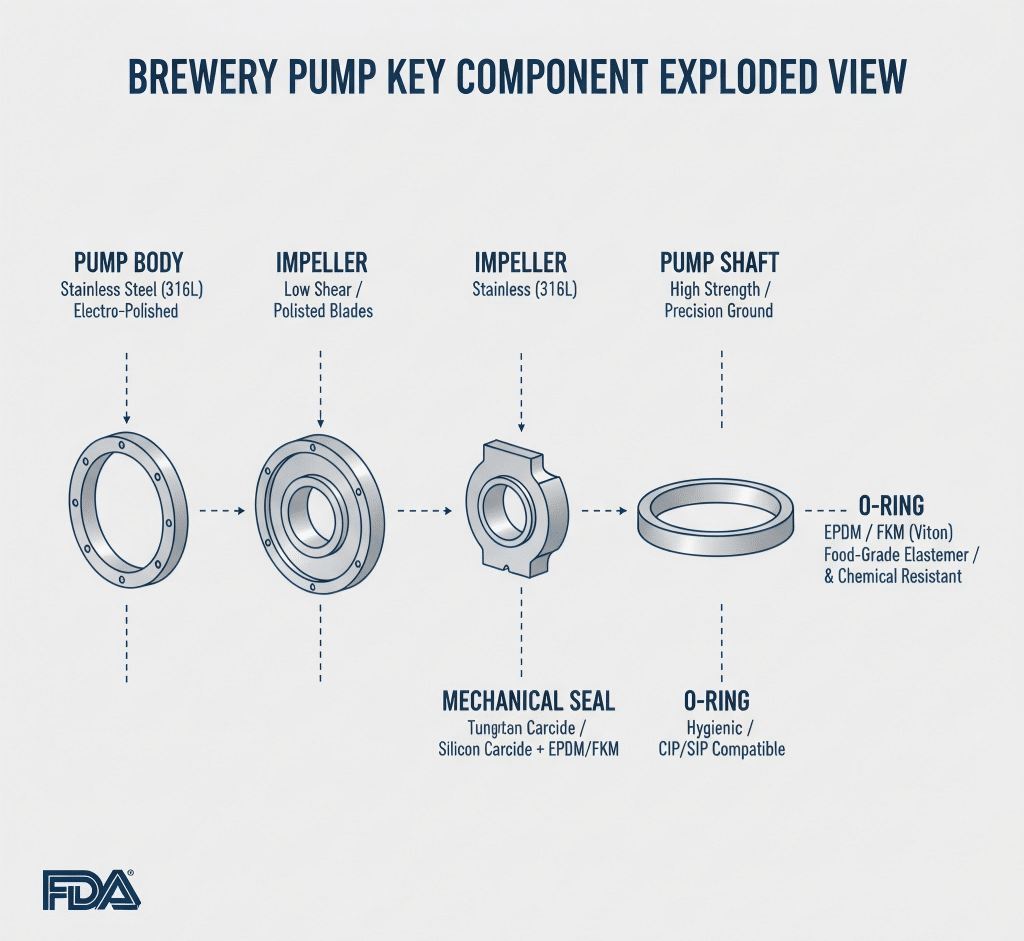

Composition and Material Selection of Brewery Pumps

Maintenance and Hygiene Management of Brewery Pumps

1. Daily Inspection and Monitoring

• Real-time monitoring of key parameters such as pump flow rate, head, motor current, and medium temperature to ensure they are within the normal range
• Check for medium leakage at pump seals, flanges, and other positions. If leakage is found, stop the machine immediately for maintenance to avoid cross-contamination of beer
• Inspect the cleanliness of the pump surface and the integrity of hygiene components (such as seals, gaskets) to ensure no dirt, mold, or beer residue accumulation
• Monitor the noise and vibration of the pump during operation. Abnormal noise or excessive vibration may indicate impeller blockage or bearing wear

2. ตารางการบำรุงรักษาเป็นประจำ

3. Common Fault Handling for Brewery Pumps

• การอุดตันของใบพัด: Immediately stop the pump, disassemble the pump body, and clean the impeller and flow channel with clean water; check the inlet filter screen and replace it if damaged; optimize the pre-treatment process of wort to reduce solid particle content
• การรั่วไหลระดับปานกลาง: Replace worn seals or gaskets with food-grade certified products; clean the leakage area thoroughly with food-grade disinfectant (such as peracetic acid) to avoid cross-contamination; check the flatness of the sealing surface and repair if necessary
• Reduced Pump Efficiency: Inspect for impeller wear, volute scaling, or pipeline blockage; clean or replace worn components; install a variable frequency drive (VFD) to adjust the pump speed according to actual production demand, reducing energy consumption
• Bacterial Contamination Risk: Increase the frequency of disassembly and cleaning; extend the CIP cleaning time for the pump; conduct bacterial testing after cleaning to ensure compliance with hygiene standards; replace aging seals in a timely manner to avoid dead corners for bacterial growth
• เสียง/การสั่นสะเทือนผิดปกติ: Check for bearing wear or impeller imbalance; replace worn bearings; perform dynamic balancing calibration on the impeller; tighten loose connecting bolts to avoid resonance

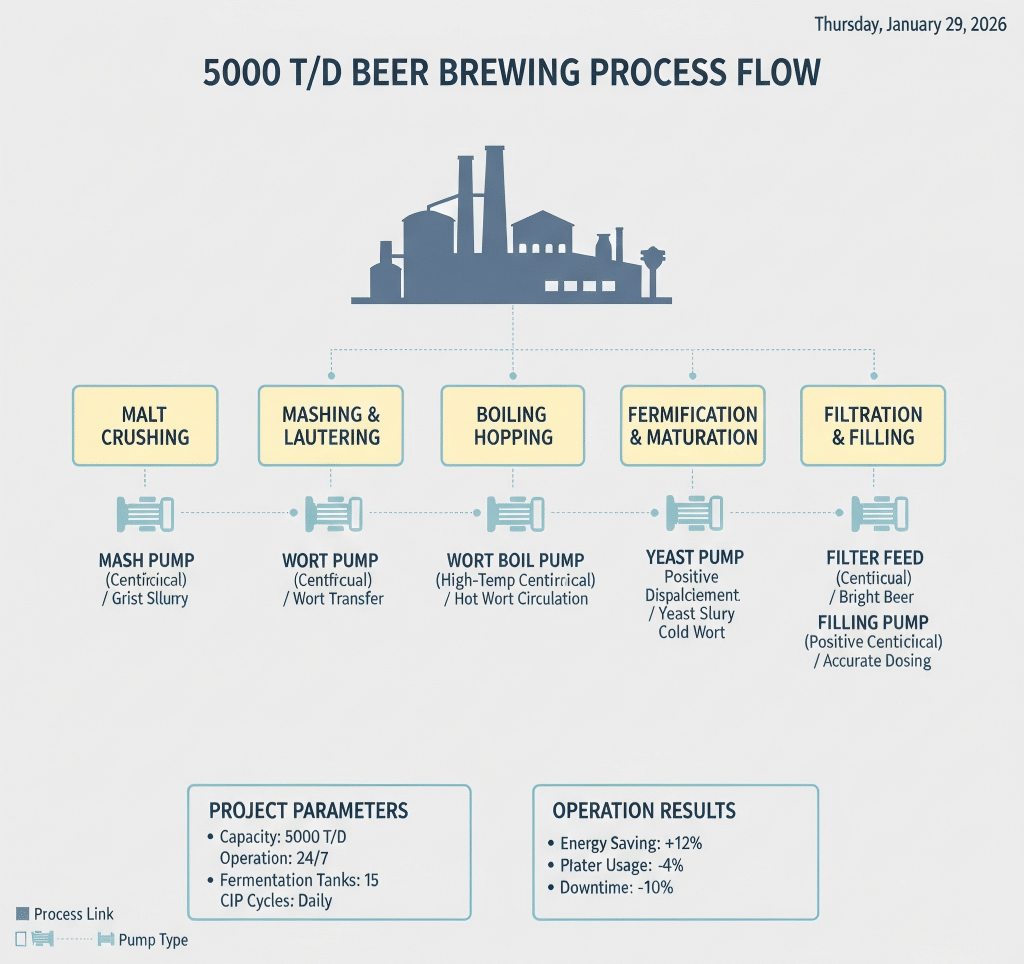

Engineering Case Study: Application of Pumps in a 5000t/d Large-Scale Brewery

ภูมิหลังของโครงการและเงื่อนไขการดำเนินงาน

• Production Capacity: 5000t/d beer output, 24h/365 continuous operation
• Key Media Characteristics: Malt-containing wort (solid content 12-15%, maximum particle size 2.5mm, pH 4.2-4.8, temperature 65-72℃); finished beer (pH 6.8-7.2, temperature 2-4℃); CIP cleaning solution (alkaline, pH 12-13, temperature 75-85℃); brewing wastewater (solid content 8-10%, pH 5.5-6.5)
• Operation Requirements: Pump operational rate ≥98.5%; hygiene compliance with FDA 21 CFR Part 177 and 3-A Sanitary Standards; energy consumption ≤0.9 kWh/m³; low shear force to ensure beer flavor stability

การเลือกและกำหนดค่าปั๊ม

ผลการประยุกต์ใช้และการวิเคราะห์ข้อมูล

Key Experience Summary

• Targeted pump selection based on process characteristics: For malt-containing wort, double spiral centrifugal pumps with excellent anti-clogging performance are preferred; for finished beer, sanitary centrifugal pumps with low shear force and high hygiene level are selected
• Strict material control: All parts in contact with beer and wort use 316L stainless steel, and seals for CIP cleaning systems use FKM with strong corrosion resistance, ensuring hygiene and corrosion resistance
• Intelligent energy-saving transformation: Equipping key pumps with VFD reduces energy consumption by 12-15% and avoids excessive shear force caused by fixed-speed operation
• Establishment of a full-process hygiene management system: Combining daily flushing, regular disassembly and cleaning, and bacterial testing, effectively eliminating hygiene risks and ensuring beer safety
• Regular performance testing and preventive maintenance: Timely discovery and solution of potential faults, improving the operational reliability of the pump system and extending service life
