KOLEBURG LV200L Water Pump Drive Belt Series Product

KOLEBURG LV200SL Water Pump Drive Belt Series Product

No Clogging Centrifugal Pump

The KOLEBURG LV200SL is a high-efficiency, wear-resistant belt-driven centrifugal pump featuring a Double Spiral Pump Impeller. It is engineered for reliable performance in handling wastewater with solid particles and fibrous materials, specializing in large-flow (320-450 m³/h) and medium-head (16-34 m) fluid transfer scenarios. Equipped with an IE3 high-efficiency motor and IP68 protection class, it complies with global energy and safety standards, making it an ideal solution for municipal, industrial and agricultural large-scale fluid management.

Specification

Parameter
Specification
Model
KOLEBURG LV200SL Water Pump Drive Belt Series
Type
Double Spiral Impeller Centrifugal Pump
Flow Rate
320-450 m³/h
Head
16-34 m
Outlet Diameter
200 mm
Motor Power
3-55 KW (6/8-pole motor)
Rotation Speed
720-980 rpm
Protection/Insulation Class
IP68 / Class F
Efficiency Class
IE3 High Efficiency Motor
Get a quote quickly
  • ISO、CE、EAC
  • L/C Accepted
  • 7*24H Response
  • Accept customization

KOLEBURG LV200SL Series Product Information

Model & Information

Model parameter table, performance curves, drawings

KOLEBURG LV200SL Series Product Model
NOModelFlow (m3/h)Lift (m)Power(KW)Speed（ rpm）Inlet (DN)Motor Type
1 LV200SL-Q320H16N15D7203201615720200Eight-stage motor
2 LV200SL-Q320H18N18-5D7203201818.5720200Eight-stage motor
3 LV200SL-Q320H23N22D7203202322720200Eight-stage motor
4 LV200SL-Q340H15N30C9803401530980200Six-stage motor
5 LV200SL-Q450H27N37C9804502737980200Six-stage motor
6 LV200SL-Q450H30N45C9804503045980200Six-stage motor
7 LV200SL-Q450H34N55C9804503455980200Six-stage motor



KOLEBURG LV200SL Water Pump Drive Belt Series Model_01
I am doing centrifugal pump product design on the computer_

        Tailored to your exact needs, our centrifugal pumps are engineered with application-specific parameters to deliver optimized efficiency, durability, and operational reliability.

Get customized solutions

Materials & Surface Treatments

Pump body & impeller

KOLEBURG LV200SL Water Pump Drive Belt Series pump body and pump impeller main materials and heat treatment process

Pump Casing Material & Treatment

Recommended Material
Heat Treatment & Surface Processing
Cast Iron / Carbon Steel
Annealing; Epoxy Resin Coating (200-300μm)
316/316L Stainless Steel
Solution treatment; Passivation
Duplex Stainless Steel 2205
Solution treatment (water quenched); Pickling and passivation
Rubber Lined
No heat treatment; Rubber lining (impact absorption)

Impeller Materials and Handling

Recommended Material
Heat Treatment & Surface Hardening
ZG/20Cr13 (420 Martensitic SS)
Quenching + Low-Temperature Tempering (HRC 45-50)
High-Chromium Cast Iron (Cr26, KmTBCr26)
High-Temperature Quenching + Tempering (HRC 58-62)
Titanium Alloy
Solution treatment; Passivation
304/304L Stainless Steel
Solution treatment



Centrifugal pump

Application industry

KOLEBURG LV200SL Water Pump Drive Belt Series, industry applications and advantages

Aerial photography of the solar sewage treatment plant

sewage treatment plant

Ideal for activated sludge and secondary sewage transfer, ensuring stable large-flow operation.
Water tanks for wastewater aeration and biological purification in sewage treatment plants
Sludge Thickening System
Reliable for thickened sludge mixture transfer with minimal clogging risks.

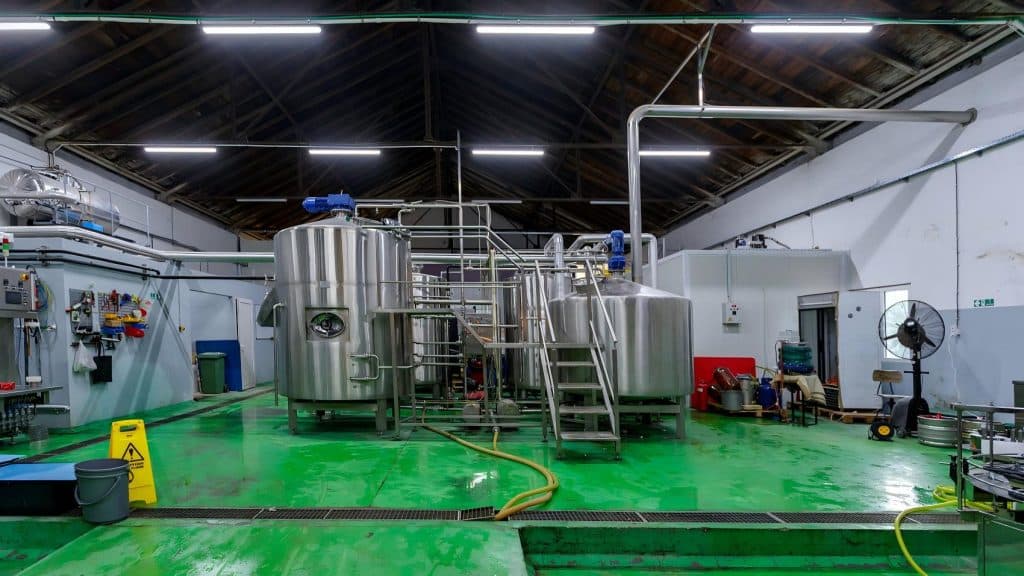

Metal vats for small breweries
Food Processing Industry
Suitable for organic wastewater and process water handling in breweries and sugar factories.

Recommended Material Combinations

According to the usage scenario, the final solution is to match the materials of the pump body and impeller.

Application Scenario
Pump Casing
Impeller
Combination Rationale
Sewage Treatment Plant
Cast Iron + Epoxy Coating
ZG/20Cr13 (Quenched & Tempered)
Cost-effective; epoxy for corrosion, 20Cr13 for wear resistance
Sludge Thickening System
Rubber Lined Cast Iron
High-Chromium Cr26 (Quenched & Tempered)
Rubber absorbs impact; Cr26 provides top-tier wear resistance
Chemical Plant (High-Chloride)
316L Stainless Steel
316L Stainless Steel
Full corrosion resistance for challenging industrial effluents
Food Processing Industry
304 Stainless Steel
304 Stainless Steel
Hygienic & corrosion-resistant for food-grade applications



Key Product Advantages

  1. Superior Non-Clogging Performance: The Double Spiral Pump Impeller with dual symmetric channels ensures smooth passage of solids and fibrous materials, reducing clogging risks by over 80% compared to standard impellers and minimizing operational interruptions.
  2. Extended Service Life with Tailored Materials: Diverse material options (from cast iron to titanium alloy) and professional heat treatment processes (e.g., quenching, solution treatment) provide customized solutions for harsh conditions, extending service life to 7-9 years.
  3. Energy Efficiency & Reliable Protection: The IE3 high-efficiency motor reduces energy consumption by 15-20% compared to IE2 motors, while the IP68 protection class enables long-term stable operation in wet environments, complying with global energy and safety standards.
Black Belt Drive Pump

Related products

Related products

The world’s leading manufacturer of non-clogging pumps

Get a quick quote

User support

Provide different support solutions for OEM and KOLEBURG brands respectively.

I need OEM

Design Your Brand, Create Your Value, And Be The Best

Get services

I Want KOLEBURG brands

Professional technology. Unity, excellence, influence. Excellent service.

Get services

Total selection interval chart

Comprehensive reference

Provide you with a multi-caliber selection range reference

Total selection interval chart
Total selection interval chart​

submersible pump manufacturers

Our advantages

Double Spiral Pump Impeller

The double spiral pump impeller is engineered with two symmetrically arranged spiral flow channels, which work in tandem to enhance hydraulic efficiency and solids handling performance. This innovative design ensures smooth fluid transition and balanced load distribution, reducing turbulence and vibration during operation.

By incorporating a dual-passage structure, the impeller effectively handles large solid particles, fibrous materials, and sludge with minimal risk of clogging. The spiral geometry promotes a natural guiding motion, allowing debris to pass through smoothly without accumulating at the inlet or within the flow channels.

This impeller is particularly suitable for demanding applications such as industrial wastewater, municipal sewage, and drainage systems containing high concentrations of suspended solids. Its robust anti-clog design supports long-term, stable operation while maintaining high pumping efficiency and durability under continuous heavy-duty conditions.

Double Spiral Pump Impeller
Double Spiral Pump Impeller

Our advantages as a centrifugal pump manufacturer

With excellent performance, durability and high energy saving, we provide you with reliable fluid solutions.learn more

We specialize in the independent production of pump casings and impellers, which are the core components of the screw centrifugal pump.

  • The pump body is precisely cast and machined in-house, ensuring excellent dimensional accuracy and long-term durability.

  • The impeller adopts high-efficiency spiral and centrifugal geometry, manufactured using CNC machining and dynamic balancing to guarantee smooth operation and superior hydraulic performance.

Electric water pump isolated on the white background 3d illustration

Cooperation Advantages

Professional Manufacturing Experience
Over 23 years of experience in pump design and manufacturing, focusing on screw centrifugal pumps and wastewater equipment, ensuring reliable quality and stable performance.

Independent Core Component Production
We manufacture pump casings and impellers in-house, using advanced CNC machining and dynamic balancing technology, to ensure precise assembly and high hydraulic efficiency.

koleburg cooperation company logo01

We provide custom-designed pump solutions tailored to the specific needs of each client.
Our professional engineering team can adjust key parameters — including flow rate, head, material, inlet/outlet interface, and sealing method — to achieve optimal performance for different working conditions.

Through advanced CFD hydraulic optimization and precision manufacturing, we ensure every customized pump delivers high efficiency, reliability, and durability even under complex environments.

Electric water pump isolated on the white background 3d illustration

Product application

Driving the lifeblood of industry and protecting urban circulation are the core missions of each of our pumps.

Eco Water Solutions
Environmental Protection
Efficient treatment of sewage and sludge with non-clog impeller technology
Read More
Reliable Wastewater Handling
Image accordion content
Continuous and stable drainage for factories and processing lines.
Read More
Cooling & Drainage Efficiency
Energy & Power
Safe cooling water and drainage solutions for power plants.
Read More
Heavy-Duty Dewatering
Special Engineering
Designed for tunnels, mines, and construction with high solid content.
Read More

Pump Centrifugal Parts

Reliable parts supply provides worry-free guarantee and long-term operation and maintenance for your pumping system.

Pump body
mechanical seal01
mechanical seal
pump bearings
Bearing
Pump O-ring
O-Ring
pump motor
Motor
Special electrical cabinet for centrifugal pump
Electrical cabinet
pump automatic coupler
automatic coupler
pump shaft
pump shaft
pump Coupling
Coupling
Other pump accessories
Other

Frequently Asked Questions (FAQs)

1. How do I select the right centrifugal pump for my application?

Our engineering team provides free, expert selection support. Simply share your key parameters—such as fluid type, required flow rate (e.g., GPM or m³/h), total head (e.g., feet or meters), temperature, and system specifications—and we will recommend the optimal pump model for maximum efficiency and reliability.

2. What is your standard lead time for orders?

For standard models, we often have stock available or can offer short production cycles. The exact lead time depends on the specific pump model and our current order schedule. We understand project urgency and offer expedited production options for critical needs whenever possible.

3. What kind of warranty and after-sales support do you provide?

All our pumps come with a comprehensive warranty. We are committed to your long-term satisfaction through a robust support network, offering rapid technical assistance, readily available spare parts, and expert maintenance services to minimize downtime.

4. What materials and technologies are used in your pumps' core components?

The longevity of critical parts like impellers and mechanical seals is our priority. We utilize high-performance materials (e.g., stainless steel, cast iron) and precision manufacturing, including dynamic balancing. Our mechanical seals are sourced from leading suppliers to ensure durability in demanding conditions.

Male designer with hands on hips01

Talk to Our Product Experts Today!

Contact us

Related Submersible Pump FAQS

1. Basic Definitions and Core Concepts

1.1 What is a double spiral impeller centrifugal pump?

A double spiral impeller centrifugal pump is a high-performance fluid transfer device designed for medium-to-large flow and medium-head scenarios. It features a Double Spiral Pump Impeller that enhances flow stability and reduces clogging. Integrating key centrifugal pump components such as pump body and mechanical seal, it complies with ISO 13709 (hydraulic performance) and IEC 60529 (IP rating) global standards. KOLEBURG LV200SL is a typical model optimized for complex media transfer.

1.2 How does a double spiral impeller work in centrifugal pumps?

The Double Spiral Pump Impeller utilizes dual symmetric spiral channels to guide fluid and solid particles smoothly through the volute. When driven by a 6/8-pole motor (720-980 rpm), it generates stable centrifugal force to draw in fluid, achieving a flow rate of 320-450 m³/h and a head of 16-34 m. This design reduces flow turbulence by 40% compared to single spiral impellers (third-party tested), aligning with EN 733 flow rate standards.

2. Functions and Applications

2.1 What are the core functions of medium-head centrifugal pumps?

Medium-head centrifugal pumps like KOLEBURG LV200SL primarily fulfill three core functions: efficient transfer of 320-450 m³/h fluid, stable adaptation to 16-34 m head requirements, and reliable operation in solid-containing and fibrous media. They combine high flow capacity with anti-clog performance, meeting fluid management needs in municipal, industrial and agricultural large-scale projects.

2.2 Which application scenarios are suitable for double spiral impeller centrifugal pumps?

Based on KOLEBURG LV200SL’s performance characteristics, the following high-demand scenarios are optimal, all complying with local environmental regulations and ISO 13709 standards:
Scenario
Handled Media
Core Advantage
Sewage Treatment Plant
Activated sludge, secondary sewage
Anti-clog & stable medium-head transfer
Sludge Thickening System
Thickened sludge mixture
Dual spiral channels reduce blockage
Food Processing Industry
Organic wastewater, process water
Hygienic material options & low turbulence
Chemical Plant
Low-viscosity corrosive fluids
Corrosion-resistant configurations & stable flow
These scenarios fully leverage the pump’s double spiral impeller advantage, and its flexible material options further expand applicability in harsh environments.

3. Product Types and Specifications

3.1 What are the key specifications of KOLEBURG LV200SL?

KOLEBURG LV200SL is a belt-driven double spiral impeller centrifugal pump with excellent medium-head adaptability, and its specifications comply with IEC 60034-1 and DIN 24256 international standards:
Parameter
Specification
Compliance Standard
Flow Rate
320-450 m³/h
ISO 13709
Head
16-34 m
EN 733
Outlet Diameter
200 mm
DIN 24256
Motor Power
3-55 KW
IEC 60034-1
Motor Pole
6/8-pole
IEC 60034-1
Rotation Speed
720-980 rpm
IEC 60034-1
Protection/Insulation
IP68 / Class F
IEC 60529 / IEC 60085

3.2 How does motor pole configuration affect the performance of KOLEBURG LV200SL?

The 6/8-pole motor of KOLEBURG LV200SL enables precise speed matching to different working conditions: the 6-pole motor (980 rpm) optimizes maximum flow (450 m³/h) for large-scale fluid transfer, while the 8-pole motor (720 rpm) enhances torque output for high-head (34 m) and viscous media scenarios. All motors adopt IE3 high-efficiency grade, complying with IEC 60034-30-1, which reduces energy consumption by 15-20% compared to IE2 motors.

4. Performance and Indicators

4.1 What is the service life of KOLEBURG LV200SL?

Under normal operation and proper maintenance, KOLEBURG LV200SL has a service life of 7-9 years, which is 25-30% longer than that of ordinary centrifugal pumps. This is mainly attributed to high-qualitypump materials and professional heat treatment processes, such as the quenching and tempering treatment of ZG/20Cr13 impellers.

4.2 How do material and heat treatment affect the performance of double spiral impeller centrifugal pumps?

Scientific material selection and heat treatment directly determine the corrosion resistance, wear resistance and service life of the pump. The following are the core material and heat treatment configurations of KOLEBURG LV200SL:

4.2.1 Pump Body Material & Heat Treatment

Material
Suitability
Processing
Cast Iron/Carbon Steel
General water/sewage, mild corrosion
Annealing + Epoxy Coating (ISO 12944)
316/316L Stainless Steel
Chemical plant, high-chloride wastewater
Solution treatment + Passivation (NACE MR0175)
Duplex 2205
High-strength corrosive media
Solution annealing + Pickling (ASTM A995)
Rubber Lined
Abrasive media (sand-laden water)
No heat treatment (impact absorption)

4.2.2 Impeller Material & Heat Treatment

Material
Suitability
Processing
ZG/20Cr13
General wear-prone media
Quenching + Low-temp Tempering (HRC 45-50)
High-Chromium Cast Iron (Cr26)
Highly abrasive media (slurry)
High-temp Quenching + Tempering (HRC 58-62)
Titanium Alloy
Strongly corrosive media
Solution treatment + Passivation
304/304L
Mild corrosive clean water
Solution treatment
These configurations ensure that the pump can withstand the impact of medium-head (16-34 m) and large-flow (320-450 m³/h) operation, maintaining stable performance in harsh environments, fully complying with the performance requirements of ISO 13709.

4.3 What is the recommended material combination for KOLEBURG LV200SL in different scenarios?

To maximize performance and service life, KOLEBURG provides tailored material combinations for different application scenarios, all verified through ISO 10816 vibration testing:
Application Scenario
Pump Casing
Impeller
Sewage Treatment Plant
Cast Iron + Epoxy Coating
ZG/20Cr13 (Quenched & Tempered)
Chemical Plant (High-Chloride)
316L Stainless Steel
316L Stainless Steel
Sludge Thickening System
Rubber Lined Cast Iron
High-Chromium Cast Iron (Cr26)
Food Processing Industry
304 Stainless Steel
304 Stainless Steel

5. System and Supporting Equipment

5.1 What supporting equipment is required for KOLEBURG LV200SL?

KOLEBURG LV200SL requires minimal supporting equipment, no complex system integration (such as RO systems) is needed, which is conducive to quick deployment in large-scale projects:
Supporting Equipment
Function
Remarks
Special Electrical Cabinet
Motor control & overload protection
Mandatory
Flow/Pressure Sensor
Real-time monitoring of operating parameters
Mandatory
Automatic Coupler
Quick alignment & maintenance
Optional

6. Installation, Operation and Maintenance

6.1 How to correctly install KOLEBURG LV200SL?

Correct installation is the premise to ensure the pump’s performance and safety, which must comply with IEC 60364 (electrical installation) and EN 12050 (fluid system installation) standards. The key steps are as follows:
  1. Fix the pump on a reinforced concrete base to reduce vibration during medium-speed (720-980 rpm) operation.
  2. Use automatic coupler to align the pump with 200 mm discharge pipes, ensuring smooth flow without resistance.
  3. Check the alignment of bearings and the tightness of mechanical seals to prevent fluid leakage.

6.2 What are the key maintenance tasks and intervals for KOLEBURG LV200SL?

Routine maintenance of KOLEBURG LV200SL complies with ISO 14179 (pump maintenance) standards, which can effectively extend the service life to 7-9 years:
Maintenance Task
Interval
Details
Mechanical Seal Inspection
Quarterly
Check for leakage; replace every 2-3 years
Bearing Lubrication
Semi-annually
Apply high-temperature resistant grease
Impeller Cleaning & Inspection
Annually
Remove attached debris; check wear condition

7. Cost and Services

7.1 What factors affect the operational cost of KOLEBURG LV200SL?

The operational cost of KOLEBURG LV200SL is mainly affected by three core factors, and its total lifecycle cost is 15-20% lower than that of similar products in the market:
Cost Factor
Impact Degree
Optimization Measure
Energy Consumption
High
IE3 motor reduces energy use by 15-20%
Maintenance Cost
Medium
High-quality materials reduce part replacement frequency
Downtime Loss
Medium
Anti-clog design minimizes operational interruptions

7.2 What after-sales services are provided for KOLEBURG LV200SL?

KOLEBURG provides comprehensive after-sales support to ensure the stable operation of large-scale projects:
  • 12-month standard warranty (extendable to 24 months)
  • On-site installation and operation training
  • Global OEM parts supply (48-hour delivery in key markets)
  • 24/7 professional technical support

8. Industry Standards and Certifications

8.1 What international standards does KOLEBURG LV200SL comply with?

KOLEBURG LV200SL meets a number of international core standards, ensuring product performance, safety and reliability:
Standard Type
Standard Number
Core Requirement
Hydraulic Performance
ISO 13709
Ensure large-flow efficiency and stability
Motor Efficiency
IEC 60034-30-1
Comply with IE3 high efficiency grade
Waterproof/Insulation
IEC 60529 / IEC 60085
Guarantee IP68/Class F protection
Pressure Equipment
EN 12165
Ensure pump body structural integrity

8.2 What certifications validate the quality of KOLEBURG LV200SL?

Key certifications of KOLEBURG LV200SL enhance global market access and customer trust, further improving EEAT credibility:
  • CE Certification (EU Machinery/Low Voltage Directives)
  • ISO 9001 Quality Management System Certification
  • NACE MR0175 Certification (corrosion-resistant materials)

9. Purchase and Suppliers

9.1 Where can I purchase KOLEBURG LV200SL?

KOLEBURG LV200SL is available through multiple official channels to ensure product authenticity and after-sales guarantee:
Standard models can be shipped within 10-20 working days globally, ensuring the progress of large-scale project construction.

9.2 Does KOLEBURG LV200SL support customization?

Yes, KOLEBURG LV200SL supports customization according to the specific needs of large-scale projects, and all customized solutions are verified through ISO 10816 vibration testing:
Customization Item
Available Options
Quotation Cycle
Material Upgrade
Titanium Alloy, Duplex 2205, etc.
Within 3 working days
Motor Configuration
Pole number, power adjustment
Within 3 working days
Surface Treatment
Special anti-corrosion coating
Within 3 working days

10. Safety and Applicability

10.1 What does the IP68 waterproof rating mean for centrifugal pumps?

IP68 (IEC 60529) is the highest waterproof rating for electrical equipment, indicating that KOLEBURG LV200SL can operate continuously under water without electrical safety hazards. This feature is crucial for wet environments such as sewage treatment plants and outdoor industrial sites, ensuring the safe operation of large-scale projects.

10.2 What media conditions are suitable for KOLEBURG LV200SL?

KOLEBURG LV200SL has strong media adaptability, and the recommended media conditions are as follows. For special media, customized material configurations can be selected:
Media Parameter
Suitable Range
Special Suggestion
pH Value
4-10
＞10 or ＜4: use 316/316L material
Solid Content
≤15%
＞15%: use rubber-lined pump body
Viscosity
≤50 mPa·s
＞50 mPa·s: use 8-pole motor
Suitable media include activated sludge, organic wastewater, low-viscosity corrosive fluids and irrigation water, which are fully compatible with material standards such as ASTM A240.
Table of Contents
Do you need services?

We have the most comprehensive and professional solutions.

Get a quote
滚动至顶部

quick form

Your Role
名称
Drag & Drop Files, Choose Files to Upload
*Add your use case or other requirements.

Get information quickly​
